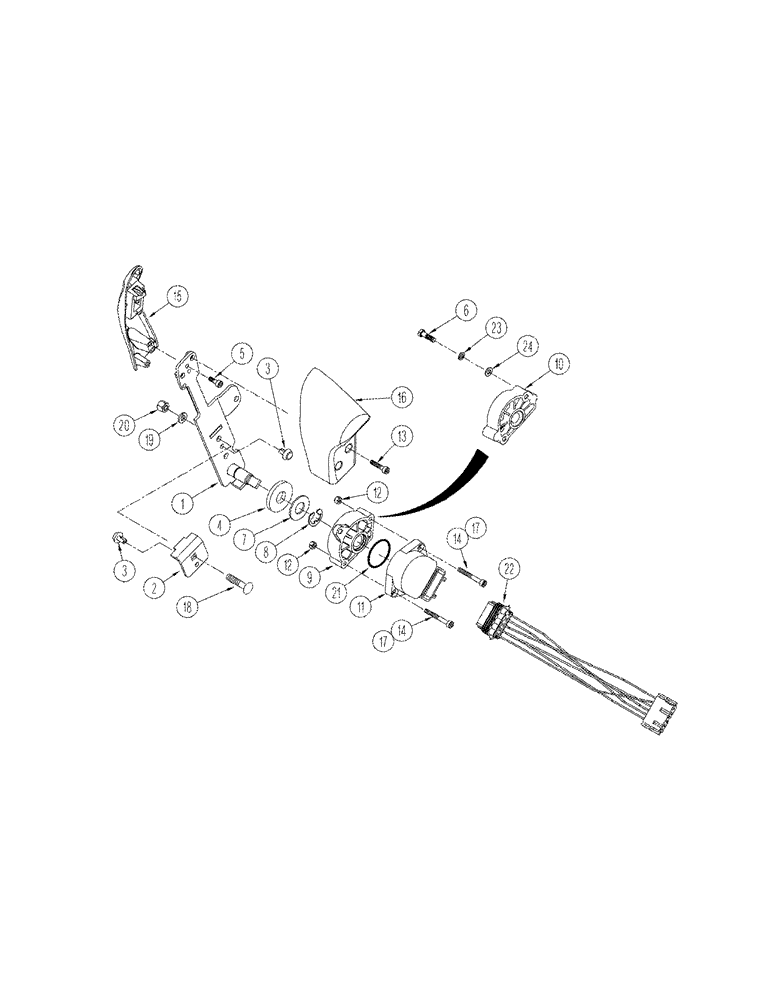

Запчасти Case IH STX275 (03-04) - THROTTLE (03) - FUEL SYSTEM

1

402797A1

BRACKET

1шт.

2

258734A2

BRACKET

1шт.

3

259040A1

INSERT

2шт.

4

237486A1

WASHER

2шт.

5

368048A1

SCREW,Prev Torque, M4 x 12mm, Cl 8.8, Full Thd

M4 x 12

3шт.

6

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

2шт.

7

495-81022

WASHER,17/32" x 1 1/8" x .060"

1шт.

8

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

9

239491A1

BUSHING

deluxe cab, luxury cab

1шт.

10

239491A1

BUSHING

standard cab

1шт.

11

402751A1

POTENTIOMETER,2500 Ohm

1шт.

12

832-46404

NUT,M4 x .7, Cl 8

2шт.

13

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

2шт.

14

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

standard cab

2шт.

15

316000A1

GRIP

switch

1шт.

16

388705A1

GRIP

throttle, standard cab, deluxe cab

1шт.

16

388864A1

GRIP

throttle, luxury cab

1шт.

17

864-4035

HEX SOC SCREW,M4 x 35mm, Cl 8.8

Deluxe cab, Luxury cab

2шт.

18

811-6030

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 30mm, Cl 8.8

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

832-10406

NUT,M6 x 1, Cl 8

1шт.

21

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

22

276352A1

HARNESS

throttle, deluxe cab, luxury cab

1шт.

23

892-11004

LOCK WASHER,M4

2шт.

24

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.
