Запчасти Case IH STX275 (02-28) - GASKET KIT 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE

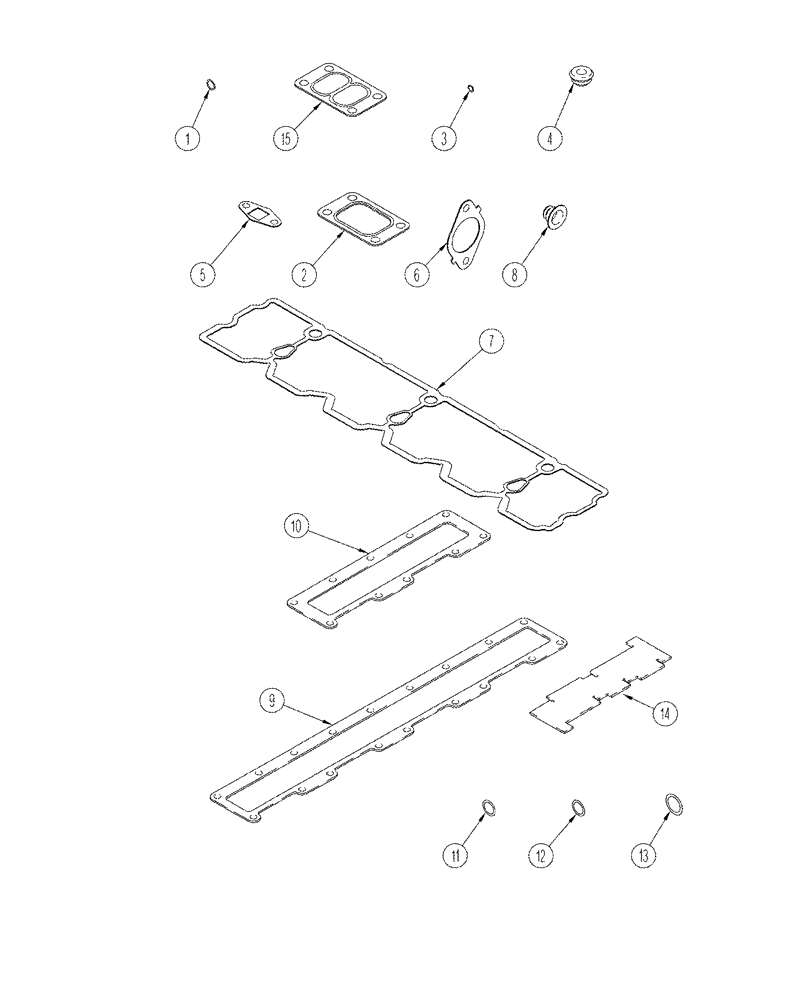

Схема запчастей Case IH STX275 - (02-28) - GASKET KIT 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE
11
9
15
10
3
5
13
6
8
7
4
14
12
2
1

Артикул

Название

Примечание

Количество

A77904

GASKET KIT

consists of: Ref. 1 - 14

1шт.

1

J867043

SEAL,1.78mm Thk x 10.82mm ID

injector, see Figure 03-09

6шт.

2

J919369

GASKET,0.5mm Thk

turbocharger, seeFigure 02-14

1шт.

3

J906659

SEAL

nozzle, 7 mm, see Figure 03-14

6шт.

4

J942659

ISOLATOR

noise, see Figure 02-19

5шт.

5

J937706

GASKET,0.79mm Thk

oil drain, see Figure 02-14

1шт.

6

84368103

MANIFOLD GASKET,1.08mm Thk

exhaust, see Figure 02-13

6шт.

7

J943303

GASKET

valve, see Figure 02-19

1шт.

8

J943888

SEAL

intake, valve, see Figure 02-20

4шт.

9

J944646

MANIFOLD GASKET

intake, see Figure 02-13

1шт.

10

J944647

GASKET

connecting, see Figure 02-13

1шт.

12

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

See Figure 03-14

6шт.

13

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

1шт.

14

J823921

GAUGE

length

1шт.

15

J917892

GASKET,0.79mm Thk

not illustrated

1шт.

11

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

Выбрано товаров: 16
