(09-46) - AIR CONDITIONING AIR FILTER HOUSING ASSEMBLY

Запчасти Case IH STX275 (09-46) - AIR CONDITIONING AIR FILTER HOUSING ASSEMBLY (09) - CHASSIS/ATTACHMENTS

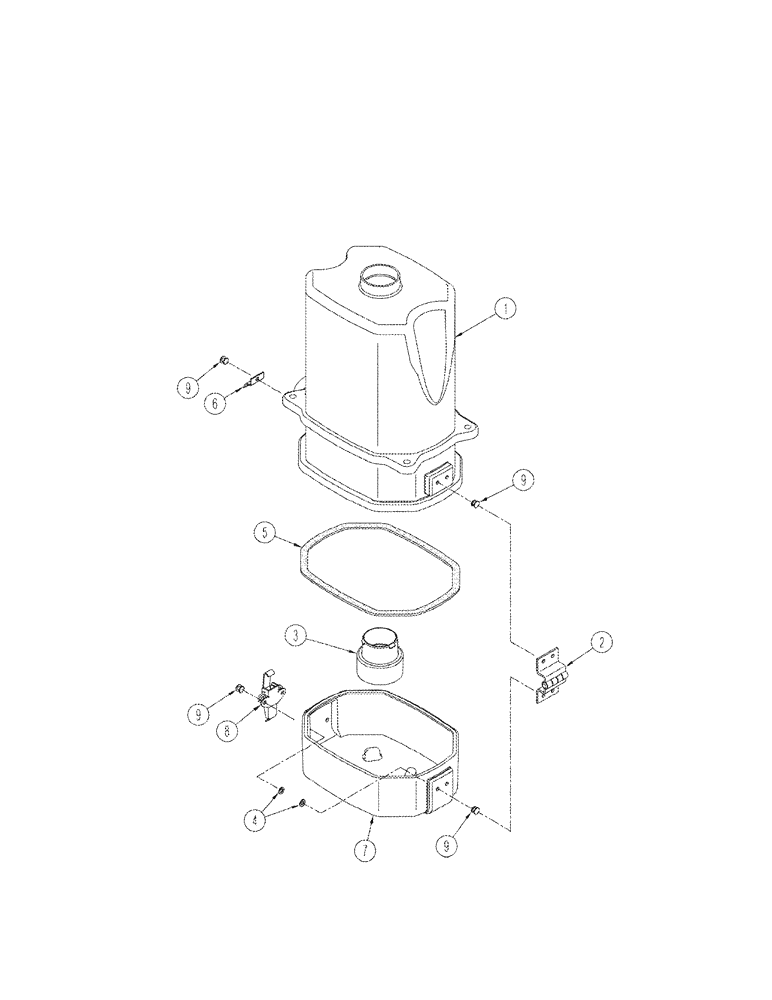

Схема запчастей Case IH STX275 - (09-46) - AIR CONDITIONING AIR FILTER HOUSING ASSEMBLY (09) - CHASSIS/ATTACHMENTS
2
9
7
9
9
5
6
4
1
8
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

319970A2

HOUSING

air filter, consists of: Ref. 1 - 9

1шт.

1

323384A1

HOUSING

filter, upper

1шт.

2

319969A1

HINGE

1шт.

3

307016A1

COUPLING

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

7шт.

5

359585A1

SEAL

cut from 187874C2

1шт.

6

307021A2

CLIP

1шт.

7

305750A2

HOUSING

filter, lower

1шт.

8

400193A1

LATCH

1шт.

9

151-510

RIVET,Pop, 3/16" x .450"

5/32 x 43/64

7шт.
