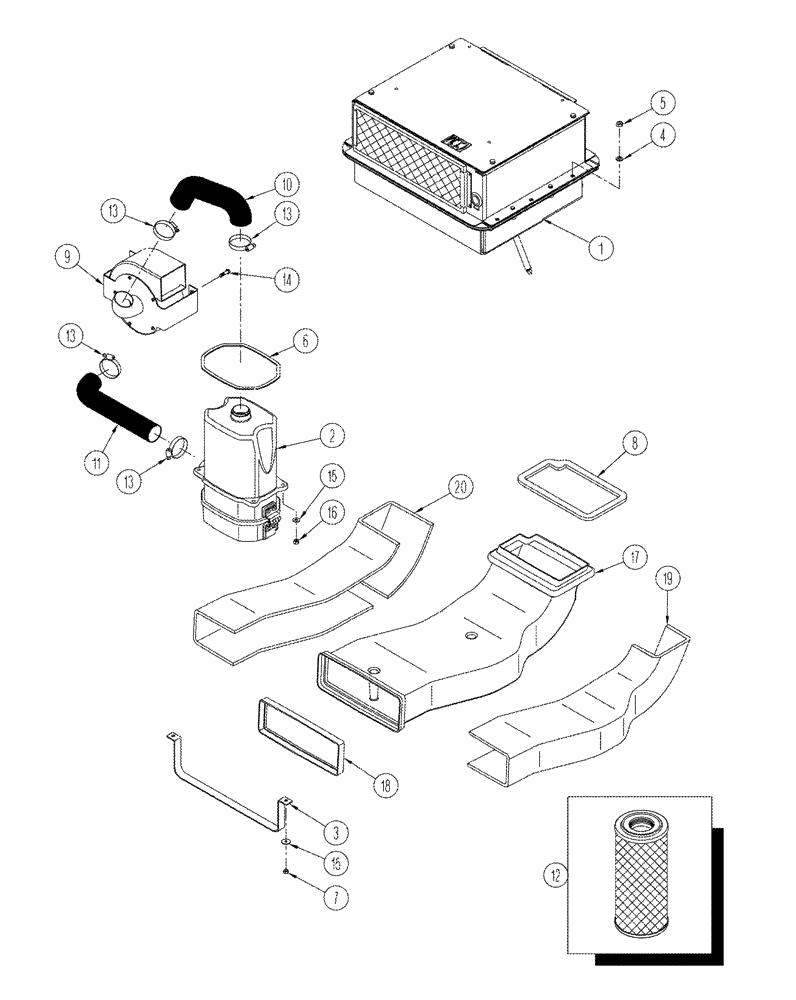

Запчасти Case IH STX275 (09-43) - AIR CONDITIONING DUCTS (09) - CHASSIS/ATTACHMENTS

1

316952A2

AIR CONDITIONER

without auto temp control, standard cab, see Figure 09-45

1шт.

1

316951A2

AIR CONDITIONER

with auto temp control, deluxe cab, luxury cab, see Figure 09-44

1шт.

2

319970A2

HOUSING

air filter, see Figure 09-46

1шт.

3

384950A1

BRACKET

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

6

359586A1

SEAL

filter

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

278967A3

GASKET

floor plate

1шт.

9

NSS

NOT SOLD SEPARAT

BLOWER ASSY, see Figure 09-47, order components

1шт.

10

307024A4

INTAKE AIR HOSE,57.00 mm ID x 390.00 mm

1шт.

11

307025A4

INTAKE AIR HOSE,54.00 mm ID x 390.00 mm

1шт.

12

259288A1

CAB FILTER

air

1шт.

13

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

14

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

17

327851A1

DUCT

1шт.

18

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

1шт.

19

328051A2

FOAM INSULATION

duct, right-hand

1шт.

20

328052A2

FOAM INSULATION

duct, left-hand

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.
