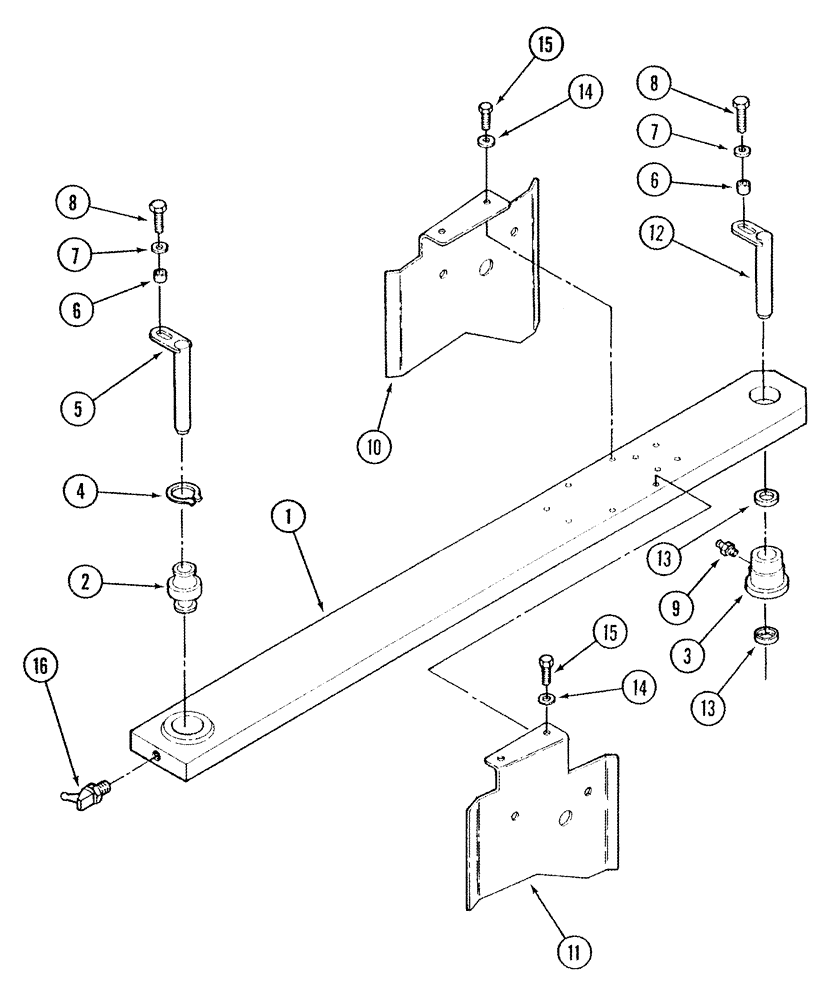

Запчасти Case IH STX275 (09-35) - LINK ASSY CONNECTING (09) - CHASSIS/ATTACHMENTS

222241A1

LINK

consists of: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LINK

1шт.

2

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

1шт.

3

70-6217T1

BUSHING

1шт.

4

101-21354

SNAP RING,#354, Int

1шт.

5

195941A1

PIN,44.37mm OD x 205mm L

1шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

8

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

10

344930A5

COVER

left-hand

1шт.

11

344929A5

COVER

right-hand

1шт.

12

70-6076T3

PIN

1-3/4 x 7-1/4

1шт.

13

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

2шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
