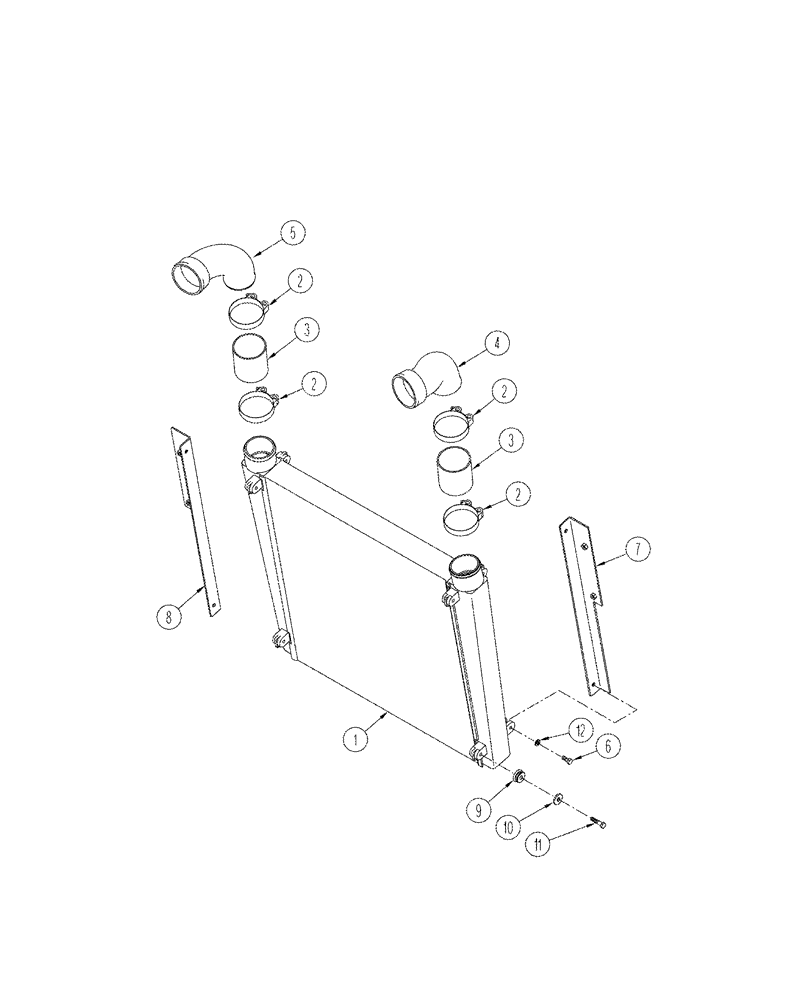

Запчасти Case IH STX275 (02-06) - AIR COOLER MOUNTING STX 275 Tractor (02) - ENGINE

1

194375A1

AFTERCOOLER

1шт.

2

L115549

CLAMP,69.85mm - 92.08mm

4шт.

3

329736A1

HOSE

air intake

2шт.

4

370114A1

ELBOW

right-hand

1шт.

5

370115A1

ELBOW

left-hand

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

7

337053A2

ANGLE

mounting, fuel cooler, right-hand

1шт.

8

337054A2

ANGLE

mounting, fuel cooler, left-hand

1шт.

9

60-6650T1

RUBBER BUSHING

4шт.

10

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

4шт.
