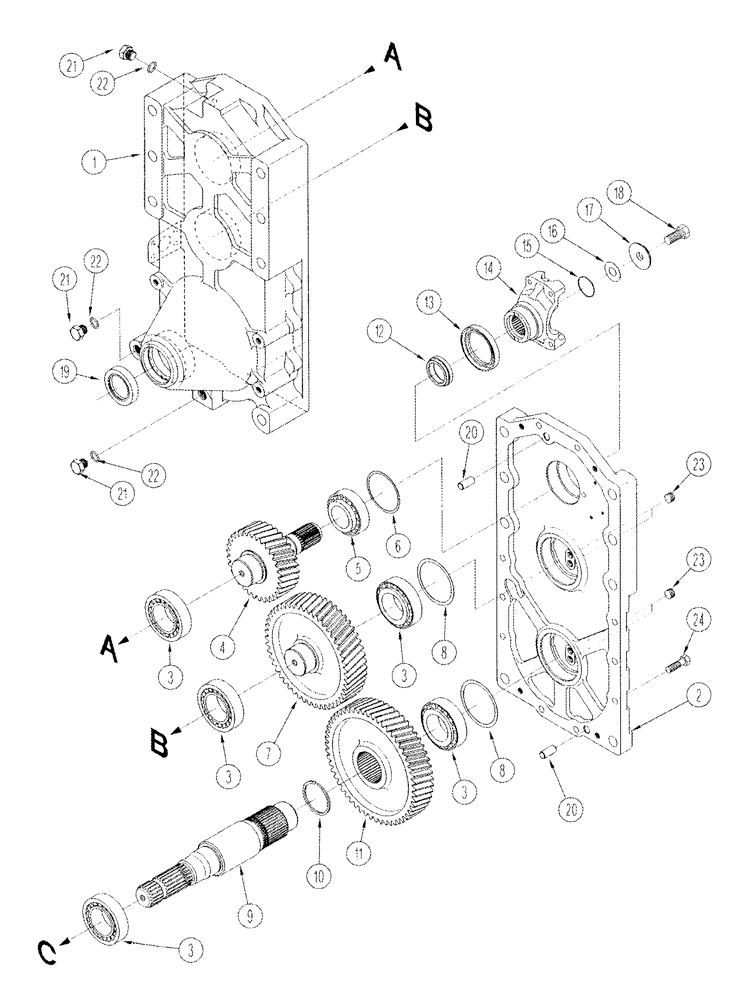

Запчасти Case IH STX275 (06-34) - POWER TAKEOFF TRANSFER CASE ASSEMBLY (06) - POWER TRAIN

253341A2

GEARBOX ASSY

transfer, consists of: Ref. 1 - 24

1шт.

403073A1R

REMAN-PTO GEARBOX A.

STX275, STX325 Reman for new P/N 253341A2

1шт.

403073A1C

CORE-PTO GEARBOX A.

Return Number

1шт.

1

375500A1

HOUSING

rear

1шт.

2

375501A1

HOUSING

front

1шт.

3

90-8459T1

ROLLER BEARING

5шт.

4

375502A1

GEAR

input

1шт.

5

375503A1

TAPERED BEARING

1шт.

6

375504A1

SHIM

1шт.

6

375505A1

SHIM

1шт.

6

375506A1

SHIM

1шт.

6

375507A1

SHIM

1шт.

7

375508A1

GEAR

idler

1шт.

8

33-1456T1

SHIM

0.10 mm (0.004 in.)

1шт.

8

33-1457T1

SHIM

0.30 mm (0.012 in.)

1шт.

8

33-1458T1

SHIM

0.50 mm (0.020 in.)

1шт.

8

33-1459T1

SHIM

0.70 mm (0.027 in.)

1шт.

8

33-1474T1

SHIM

0.15 mm (0.006 in.)

1шт.

9

375509A1

SHAFT

output

1шт.

10

S2240S00F

RING, SNAP

RING SNAP

1шт.

11

375510A1

GEAR

output

1шт.

12

375511A1

SPACER

1шт.

13

S8820S00F

OIL SEAL

1шт.

14

398447A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

15

375512A1

O-RING

1шт.

16

S9950S00F

SHIM,0.1mm Thk

(0.10 mm)

1шт.

16

S9960S00F

SHIM,0.31mm Thk

(0.30 mm)

1шт.

16

S9970S00F

SHIM,0.51mm Thk

(0.51 mm)

1шт.

16

S9980S00F

SHIM,0.71mm Thk

(0.7 mm)

1шт.

17

S8860S00F

THRUST WASHER

1шт.

18

514-1021

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

1шт.

19

375514A1

OIL SEAL

1шт.

20

33-1467T1

DOWEL

2шт.

21

220066A1

PLUG,M18 x 1.5, ORB

Includes Ref. 22

3шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

23

375515A1

PLUG

4шт.

24

514-830

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

10шт.
