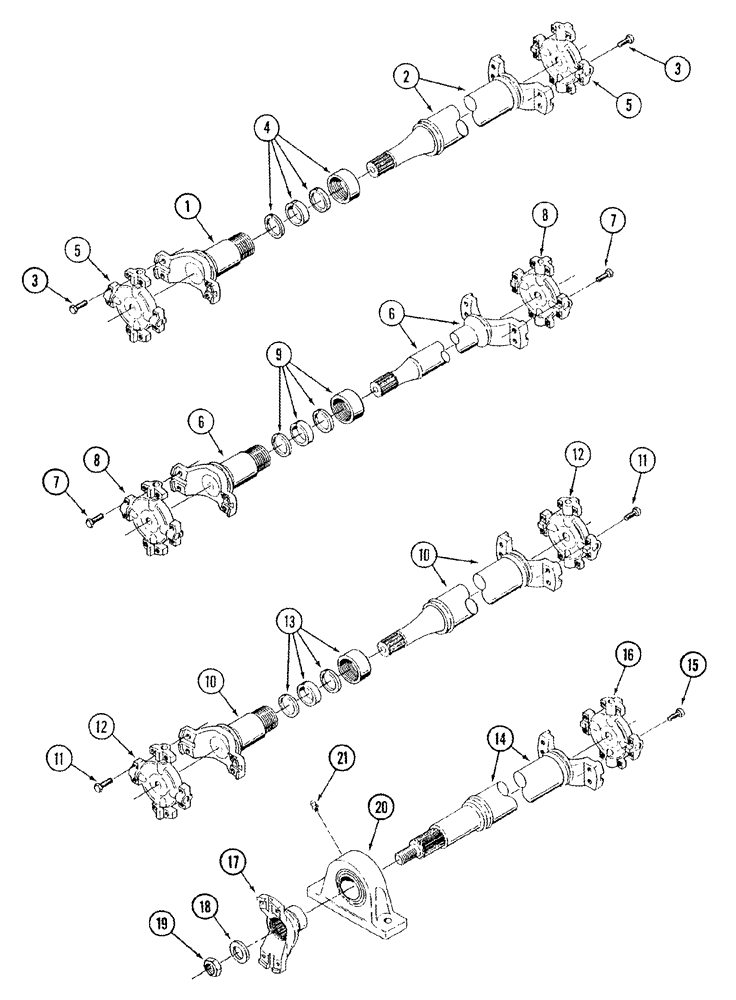

Запчасти Case IH STX275 (06-28) - DRIVE SHAFT ACCUSTEER TRACTOR (06) - POWER TRAIN

378388A1

DRIVE SHAFT

input, STX 275 (1), consists of: Ref. 1 - 5

1шт.

367208A1

DRIVE SHAFT

input, STX 325, consists of: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT flanged

1шт.

3

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

STX 275 (8), STX 325 (8)

1шт.

3

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

STX 325 (8)

1шт.

4

302415A1

SEAL RETAINER

STX 275 (1)

1шт.

4

303413A1

HARNESS

STX 325 (1)

1шт.

5

90-5882T2

U-JOINT SPIDER

7C, STX 275 (2)

1шт.

5

1-9994T3

SPIDER ASSY.

8C, STX 325 (2)

1шт.

Lube Fitting - P/N 87414, Qty 3

1шт.

5

309093A1

UNIVERSAL JOINT

8.5C, STX 325 (2)

1шт.

378385A1

DRIVE SHAFT

front axle, STX 275 (1), consists of: Ref. 6 - 9

1шт.

378393A1

DRIVE SHAFT

front axle, STX 325 (1), consists of: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT slip yoke

1шт.

7

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

8

90-5882T2

U-JOINT SPIDER

7C, STX 275 (2)

1шт.

8

1-9994T3

SPIDER ASSY.

8C, STX 325 (2)

1шт.

9

302415A1

SEAL RETAINER

STX 275 (1)

1шт.

9

302413A1

SEAL RETAINER

STX 325 (1)

1шт.

378386A1

DRIVE SHAFT

articulation, STX 275 (1), consists of: Ref. 10 - 13

1шт.

378391A1

DRIVE SHAFT

articulation, STX 325 (1), consists of: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT slip yoke

1шт.

11

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

12

90-5882T2

U-JOINT SPIDER

7C, STX 275 (2)

1шт.

12

1-9994T3

SPIDER ASSY.

8C, STX 325 (2)

1шт.

13

302415A1

SEAL RETAINER

STX 275 (1)

1шт.

13

302413A1

SEAL RETAINER

STX 325 (1)

1шт.

303506A1

DRIVE SHAFT

rear axle, STX 275 (1), consists of: Ref. 14 - 19

1шт.

305096A1

DRIVE SHAFT

rear axle, STX 325 (1), consists of: Ref. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

15

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

16

90-5882T2

U-JOINT SPIDER

7C, STX 275 (1)

1шт.

16

1-9994T3

SPIDER ASSY.

8C, STX 325 (1)

3шт.

17

411525A1

YOKE

UNIVERSAL JOINT YOKE STX 275 (1)

1шт.

17

404451A1

YOKE

UNIVERSAL JOINT YOKE 8C, STX 325 (1)

1шт.

18

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1шт.

19

131-487

LOCK NUT,1 1/4"-18

1шт.

20

90-4657T1

BEARING CARRIER

pillow block, STX 275 (1)

1шт.

20

90-7378T1

BEARING CARRIER

pillow block, STX 325 (1)

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
