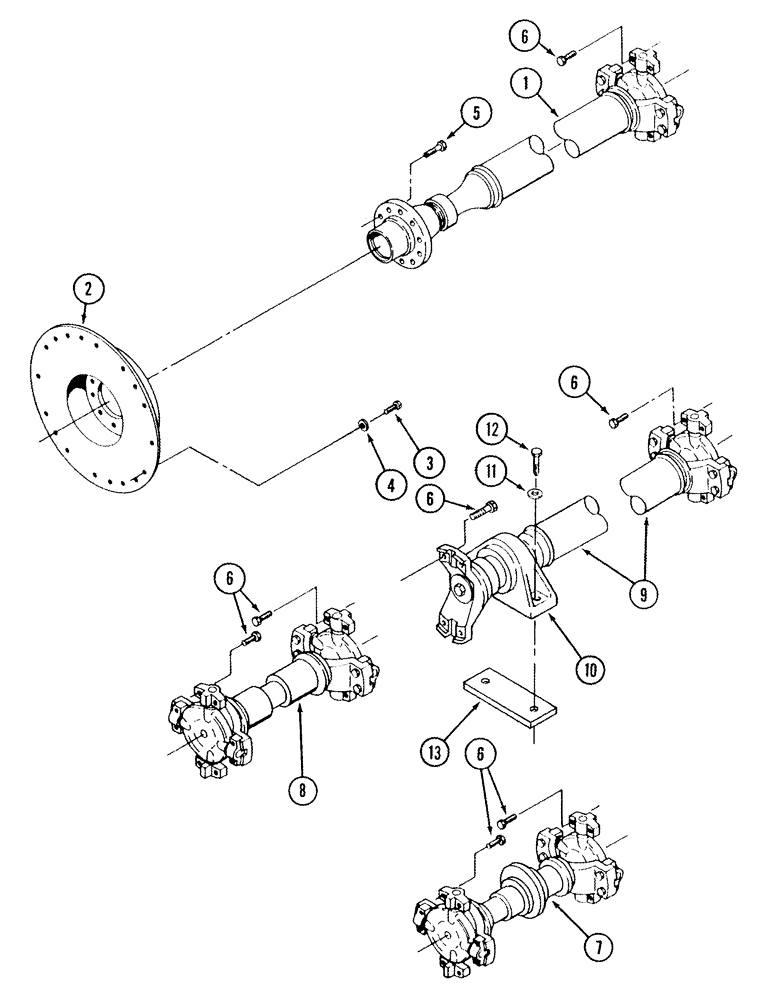

Запчасти Case IH STX275 (06-25) - DRIVE SHAFTS AND MOUNTING (06) - POWER TRAIN

1

378917A1

DRIVE SHAFT

input, see Figure 06-26, STX 275 (1)

1шт.

1

394373A1

DRIVE SHAFT

input, see Figure 06-26, STX 325 (1)

1шт.

2

357929A1

DAMPER

vibration, STX 275 (1)

1шт.

2

357931A1

DAMPER

vibration, STX 325 (1)

1шт.

3

426-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

12шт.

4

496-81023

WASHER

13/32 x 3/4 x 7/32

12шт.

5

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

STX 275 (8)

1шт.

5

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

STX 325 (10)

1шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

24шт.

7

389017A1

DRIVE SHAFT

front axle, see Figure 06-26, STX 275 (1)

1шт.

7

305100A1

DRIVE SHAFT

front axle, see Figure 06-26, STX 325 (1)

1шт.

8

378386A1

DRIVE SHAFT

articulation, see Figure 06-26, STX 275 (1)

1шт.

8

378391A1

DRIVE SHAFT

articulation, see Figure 06-26, STX 325 (1)

1шт.

9

303506A1

DRIVE SHAFT

rear axle, see Figure 06-26, STX 275 (1)

1шт.

9

305096A1

DRIVE SHAFT

rear axle, see Figure 06-26, STX 325 (1)

1шт.

10

90-4657T1

BEARING CARRIER

pillow block, see Figure 06-26, STX 275 (1)

1шт.

10

90-7378T1

BEARING CARRIER

pillow block, see Figure 06-26, STX 325 (1)

1шт.

11

896-16020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

2шт.

12

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

2шт.

13

363864A1

SPACER

STX 275 (1)

1шт.
