(06-24) - FIFTH SHAFT ASSY

Запчасти Case IH STX275 (06-24) - FIFTH SHAFT ASSY (06) - POWER TRAIN

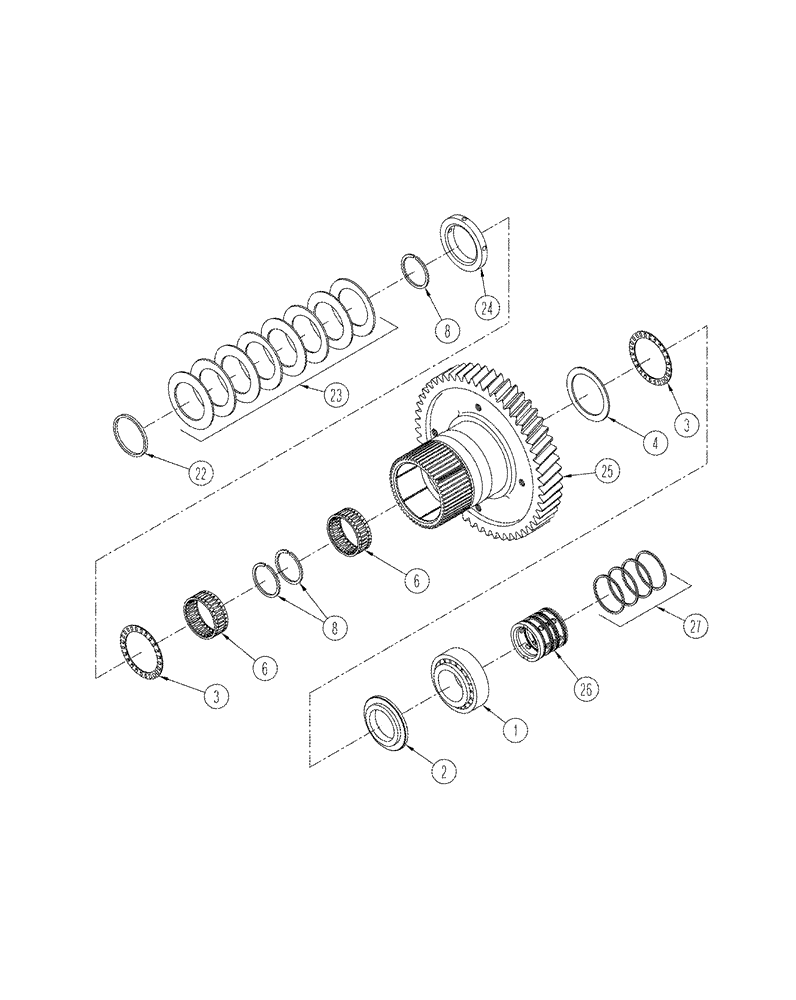

Схема запчастей Case IH STX275 - (06-24) - FIFTH SHAFT ASSY (06) - POWER TRAIN
6
2
23
26
6
25
22
3
1
8
4
3
24
27
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

370541A1

SHAFT ASSY.

fifth, continued from previous page, consists of: Ref. 1 - 27

1шт.

22

362611A1

SPACER

1шт.

23

364826A1

PLATE

spring

8шт.

24

364827A1

THRUST WASHER

1шт.

25

370566A1

GEAR

driven

1шт.

26

370568A1

CARRIER

seal

1шт.

27

S4150S00F

RING

4шт.

398440A1

GASKET KIT

transmission repair, see Figures 06-09, 06-10, 06-13, 06-14, 06-15, 06-18, 06-22, 06-23, Includes: Ref. 27

1шт.
