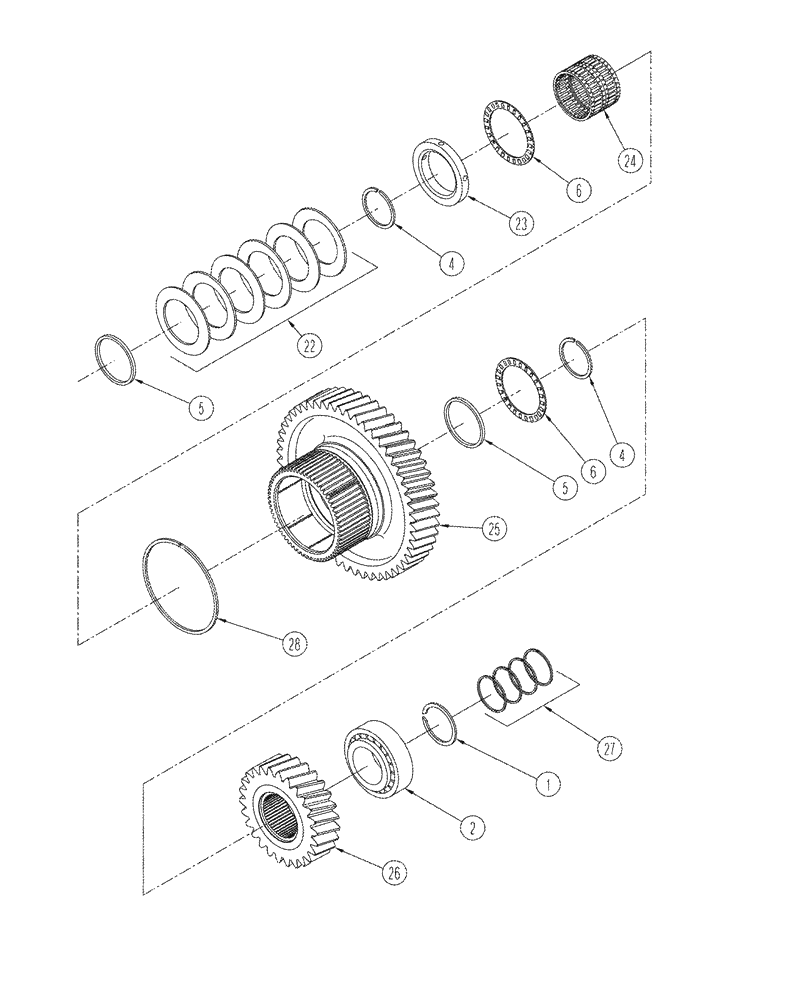

Запчасти Case IH STX275 (06-22) - FOURTH SHAFT ASSY (06) - POWER TRAIN

370540A1

SHAFT ASSY.

fourth, continued from previous page, consists of: Ref. 1 - 27

1шт.

16

364822A1

PISTON

clutch, 9

1шт.

17

370559A1

RING

2шт.

18

S4410S00F

RING

2шт.

19

364824A1

SHAFT

drum

1шт.

20

364825A1

PISTON

clutch, 9

1шт.

21

S14701960

BALL,3.968mm OD

2шт.

22

364826A1

PLATE

spring

6шт.

23

364827A1

THRUST WASHER

1шт.

24

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

2шт.

25

364828A1

DRIVEN GEAR

1шт.

26

364830A1

GEAR

drive

1шт.

27

90-7938T1

SEALING RING

4шт.

28

392073A1

SEALING RING

SEALRING

1шт.

398440A1

GASKET KIT

transmission repair, see Figures 06-09, 06-10, 06-13, 06-14, 06-15, 06-18, 06-23, 06-24, Includes: Ref. 18 and 27

1шт.
