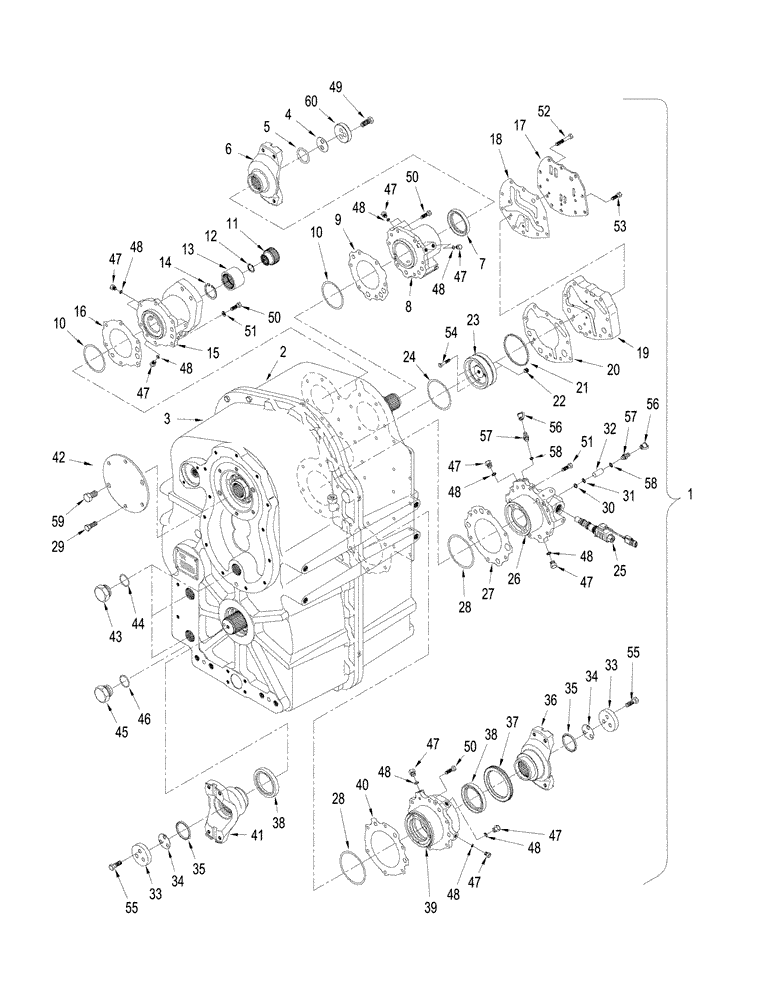

Запчасти Case IH STX275 (06-10) - POWER SHIFT TRANSMISSION - COVERS AND YOKES (06) - POWER TRAIN

403066A1

TRANSMISSION

TRANSMISSION, 8.5C Yoke

1шт.

87627458R

REMAN-TRANSMISSION

TRANSMISSION, 8.5C Yoke

1шт.

87627458C

CORE-TRANSMISSION

Return Part Number, PS3

1шт.

87416587

TRANSMISSION

TRANSMISSION, Closed Loop PS3 - 8C

1шт.

87627456R

REMAN-TRANSMISSION

TRANSMISSION, Closed Loop PS3 - 8C

1шт.

87627456C

CORE-TRANSMISSION

Return Part Number PS3

1шт.

2

375486A1

HOUSING

Front

1шт.

3

370636A1

HOUSING

Rear

1шт.

4

427560A1

SHIM,0.1mm Thk

(0.004")

1шт.

4

427561A1

SHIM,0.3mm Thk

(0.012")

1шт.

4

427562A1

SHIM,0.7mm Thk

0.50 mm (0.020in)

1шт.

5

238-5327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

1шт.

6

373136A1

COUPLING FLANGE

8C, Input

1шт.

With 400 Series Axles

1шт.

6

362563A1

COUPLING FLANGE

8.5C, Input

1шт.

With 500 Series Axles

1шт.

7

428159A1

OIL SEAL

1шт.

8

362564A1

RETAINER

1шт.

9

362565A1

GASKET

1шт.

10

359242A1

SHIM,0.1mm Thk

(0.004")

1шт.

10

359243A1

SHIM,0.15mm Thk

(0.006")

1шт.

10

359244A1

SHIM,0.3mm Thk

(0.012")

1шт.

10

359251A1

SHIM,0.5mm Thk

(0.020")

1шт.

11

362566A1

ADAPTER

1шт.

12

800-2128

SNAP RING,M28, Int

1шт.

13

362567A1

COUPLING

1шт.

14

428681A1

RING, SNAP

RING SNAP

1шт.

15

362568A1

RETAINER

Second Shaft

1шт.

16

362569A1

GASKET

Second Shaft

1шт.

17

362570A1

PLATE

, Serial Range: -JEE0104001

1шт.

17

87431413

PLATE

, Start Serial: JEE0104001

1шт.

18

362571A1

GASKET

, Serial Range: -JEE0104001

1шт.

18

87351331

GASKET

, Start Serial: JEE0104001

1шт.

19

362572A1

PLATE

, Serial Range: -JEE0104001

1шт.

19

87431415

PLATE

, Start Serial: JEE0104001

1шт.

20

362573A1

GASKET

Third Shaft

1шт.

21

362574A1

O-RING

1шт.

22

428682A1

PLUG

2шт.

23

362575A1

RETAINER

Third Shaft

1шт.

24

359252A1

SHIM,0.1mm Thk

(0.004")

1шт.

24

359253A1

SHIM,0.15mm Thk

(0.006")

1шт.

24

362576A1

SHIM,0.3mm Thk

(0.012")

1шт.

24

362577A1

SHIM,0.5mm Thk

(0.020")

1шт.

25

362578A1

VALVE

Pulse With Modulation, See Figure 06-51

1шт.

26

362579A1

RETAINER

Clutch

1шт.

27

362580A1

GASKET

1шт.

28

427564A1

SHIM,0.1mm Thk

(0.004")

1шт.

28

427565A1

SHIM,0.15mm Thk

(0.006")

1шт.

28

427566A1

SHIM,0.3mm Thk

(0.012")

1шт.

28

427567A1

SHIM,0.5mm Thk

(0.020")

1шт.

28

427568A1

SHIM,0.7mm Thk

(0.028")

1шт.

29

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

30

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

31

375450A1

O-RING

0.70 mm

1шт.

32

87409376

FILTER

PWM

1шт.

33

427515A1

RETAINING PLATE

2шт.

34

427517A1

SHIM,0.1mm Thk

(0.004")

1шт.

34

427519A1

SHIM,0.3mm Thk

(0.012")

1шт.

35

428165A1

O-RING

2шт.

36

373137A1

COUPLING FLANGE

8C, Output

1шт.

With 400 Series Axles

1шт.

36

362598A1

COUPLING FLANGE

8.5C, Output

1шт.

With 500 Series Axles

1шт.

37

362601A1

RING

1шт.

38

427514A1

OIL SEAL

2шт.

39

362602A1

RETAINER

Output

1шт.

40

362603A1

GASKET

1шт.

41

373138A1

COUPLING FLANGE

8C, Output

1шт.

With 400 Series Axles

1шт.

41

362604A1

COUPLING FLANGE

8.5C, Output

1шт.

With 500 Series Axles

1шт.

42

427558A1

COVER

Power Takeoff

1шт.

43

303493A1

PLUG,Hex Soc, M42 x 2, ORB

Inc. 44

2шт.

44

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

45

375456A1

PLUG, DRAIN

M42 orb x 2, Inc. 46

1шт.

46

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

47

220064A1

PLUG,M14 x 1.5, ORB

Incl. 48

15шт.

48

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

49

428181A1

BOLT

M14 x 35; CL8.8

2шт.

50

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

24шт.

51

892-11010

LOCK WASHER,M10

6шт.

52

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

53

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

4шт.

54

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

55

514-853

BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

6шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 56 - 58

1шт.

56

H434163

DUST CAP

1шт.

57

NSS

NOT SOLD SEPARAT

Fitting

1шт.

58

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

59

427559A1

BOLT

2шт.

60

427539A1

RETAINING PLATE

1шт.

398441A1

GASKET KIT

Transmission Repair, Inc. 9, 16, 18, 20, 27, 40, Also See Figures 06-37, 06-49, 06-50, Serial Range: -JEE0104001

1шт.

87432749

GASKET KIT

Transmission Repair, Inc. 9, 16, 18, 20, 27, 40, Also See Figures 06-37, 06-49, 06-50, Start Serial: JEE0104001

1шт.

87432750

GASKET KIT

Transmission Repair, Inc. 5, 7, 9, 16, 18, 20, 21, 27, 35, 38, 40, Also See Figures 06-37 - 06-50

1шт.
