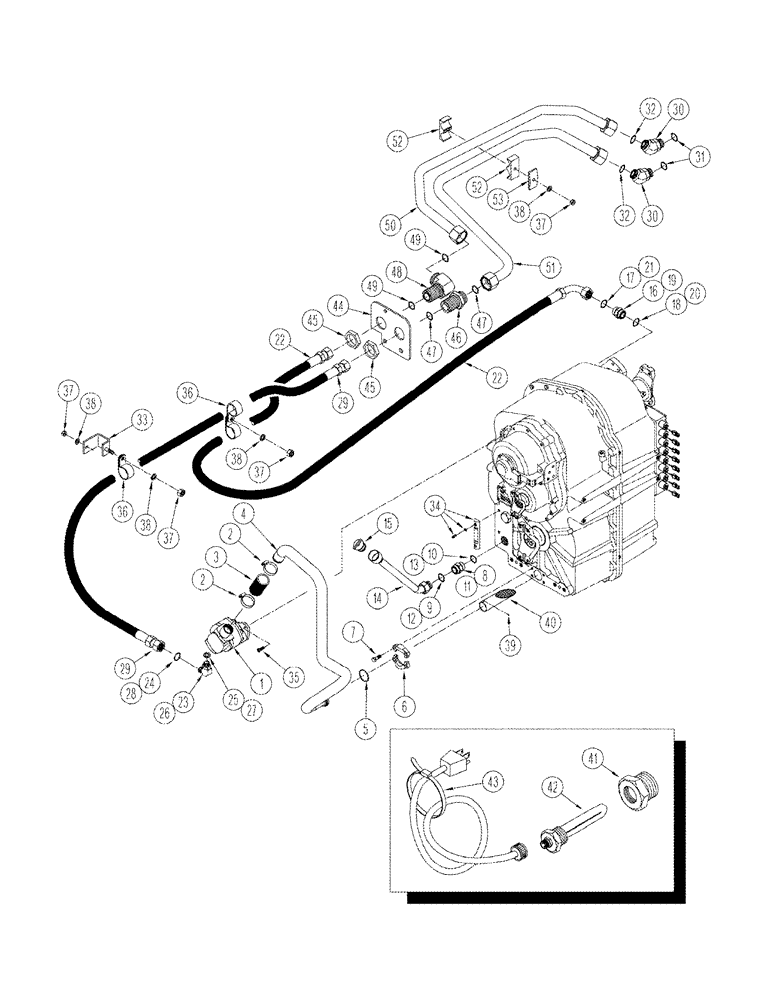

Запчасти Case IH STX275 (06-07) - TRANSMISSION LUBRICATION ACCUSTEER Tractor (06) - POWER TRAIN

1

370546A1

PUMP

oil

1шт.

1

84176413R

REMAN-HYD PUMP

Reman for New PN 370546A1

1шт.

1

84176413C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

3

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), cut from 1-4568

1шт.

4

320382A1

TUBE

1шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

2шт.

7

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

8

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

prior to PIN JEE009760, Includes: Ref. 9 and 10

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

11

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

after PIN JEE009760, Includes: Ref. 12 and 13

1шт.

12

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

13

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

14

360285A1

TUBE,31.8 mm OD, 622, 57 mm Length

transmission fill

1шт.

15

325737A1

CAP

1шт.

16

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref. 17 and 18, Serial Range: -JEE0097600

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref. 20 and 21, Start Serial: JEE0097600

1шт.

20

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

22

374549A2

HOSE ASSY.

supply, 699 mm (27 - 1/2 in.)

1шт.

23

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-7/16 fc x 1-5/16 or, prior to PIN JEE009760, Includes: Ref. 24 and 25

2шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

26

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Ref. 27 and 28, Start Serial: JEE0097600

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

29

374550A1

HOSE ASSY.

outlet, 1978 mm (78 in.)

1шт.

30

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Ref. 31 and 32

2шт.

31

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

32

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

33

380307A1

BRACKET

1шт.

34

L116247

GAUGE

Includes: hardware

1шт.

35

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

36

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

3шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

39

S14701960

BALL,3.968mm OD

steel

1шт.

40

370551A1

TUBE

1шт.

186135A1

KIT

transmission heater, Includes: Ref. 41 - 43

1шт.

41

50-3675T1

FITTING

prior to PIN JEE009760

1шт.

41

367930A1

ADAPTER,M42 x 2 NPT

after PIN JEE009760

1шт.

42

385486A1

HEATER ASSY.

300 W, with cord set

1шт.

43

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

44

374530A1

BRACKET

1шт.

45

701-908

BHD LOCK NUT,1-7/16" - 12

M25

2шт.

46

701-116

UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fc sl x blkhd, Includes: Ref. 47

1шт.

48

701-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fcsl x blkhd, Includes: Ref. 49

1шт.

50

395788A1

TUBE

1шт.

51

395790A1

TUBE

1шт.

52

50-2534T1

CLAMP

2шт.

53

50-2533T1

PLATE

1шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

24

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

47

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

49

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
