Запчасти Case IH STEIGER 620 (90.116.AC[01]) - LH FRONT FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

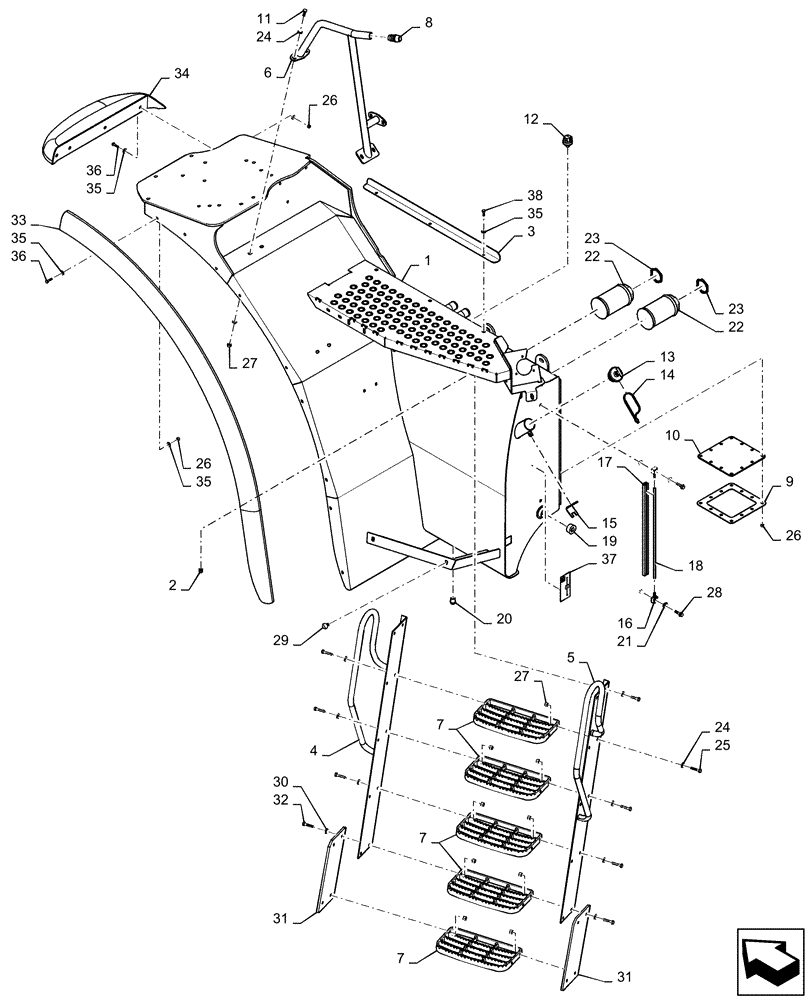

Схема запчастей Case IH STEIGER 620 - (90.116.AC[01]) - LH FRONT FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS
27
17
2
23
9
18
16
1
4
3
26
15
7
7
22
14
30
24
8
35
7
12
32
21
29
5
27
20
33
13
31
25
26
36
19
38
26
23
37
10
22
24
36
28
35
35
11
34
31
35
6

Артикул

Название

Примечание

Количество

1

47643758

RESERVOIR, HYDRAULIC

LH Front Fender

1шт.

2

408566A1

INSERT,M8

Threaded, M8

3шт.

3

47643753

GUARD

LH Platform

1шт.

4

84348147

LADDER

LH Front

1шт.

5

84348143

LADDER

LH Rear

1шт.

6

47486588

HANDLE

LH Grab

1шт.

7

87301185

STEP

Aluminum

5шт.

8

363226A1

BUMPER

Door

1шт.

9

84597083

GASKET

Hydraulic Tank Access Cover

1шт.

10

47379610

COVER

Hydraulic Tank Access

1шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

12

1971726C1

BREATHER,1/4" - 18

1/4" - 18 NPT

1шт.

13

325737A1

CAP

Fill

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

1шт.

15

87646822

BRACKET

Fill Cap Lock

1шт.

16

352767A1

FITTING

Sight Gauge

2шт.

17

349869A1

CHANNEL

Sight Gauge

1шт.

18

355179A1

HOSE

Sight Gauge

1шт.

19

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

20

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

21

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

22

196955A1

FILTER SCREEN

Suction

2шт.

23

435032A1

LOCK NUT

2"

2шт.

24

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

32шт.

25

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

24шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

32шт.

28

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

29

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

2шт.

30

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

31

87734958

SUPPORT

Step

2шт.

32

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

33

84279811

TRIM PANEL

LH Front Fender

1шт.

34

84279814

TRIM

LH Front Fender

1шт.

35

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

27шт.

36

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

37

84308758

DECAL

Hydraulic Oil Level

1шт.

38

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

Выбрано товаров: 38
