Запчасти Case IH STEIGER 620 (55.988.AD[02]) - SCR MAIN FRAME HARNESS, 540, 580, 620 (55) - ELECTRICAL SYSTEMS

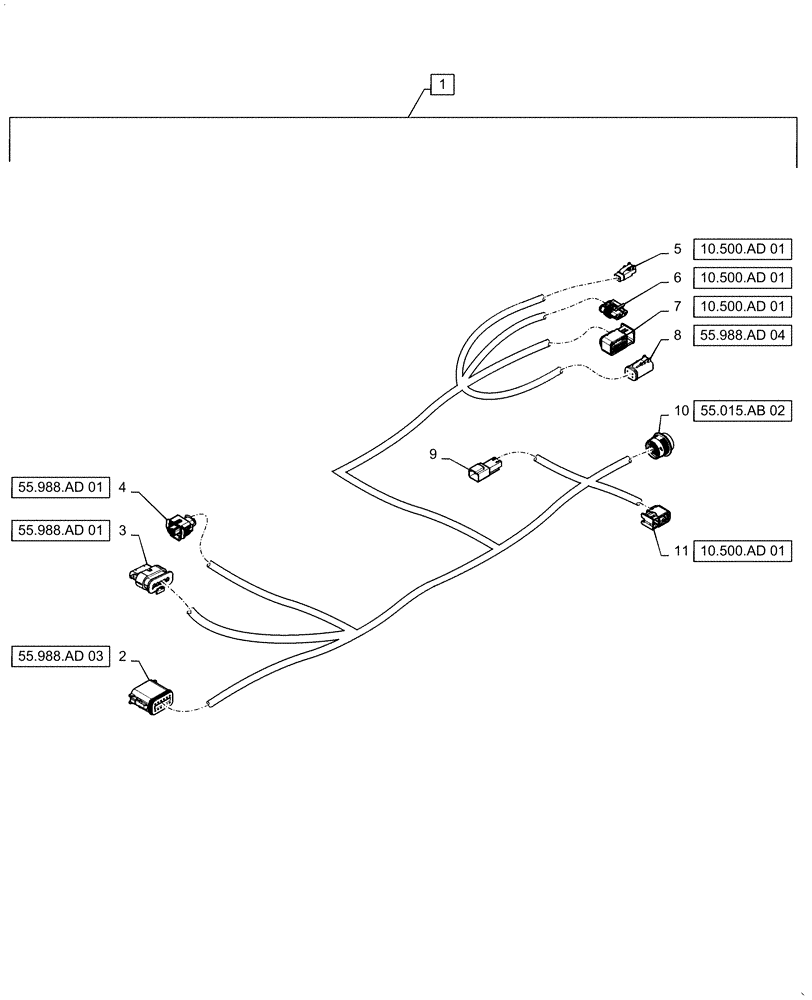

Схема запчастей Case IH STEIGER 620 - (55.988.AD[02]) - SCR MAIN FRAME HARNESS, 540, 580, 620 (55) - ELECTRICAL SYSTEMS
11
5
7
10.500.ad 01
3
55.988.ad 03
10.500.ad 01
9
1
6
55.988.ad 01
10
8
2
10.500.ad 01
55.988.ad 04
55.015.ab 02
4
10.500.ad 01
55.988.ad 01

Артикул

Название

Примечание

Количество

1

47377467

WIRE HARNESS

Main SCR, Incl 2 - 11

1шт.

2

87696075

ELEC CONNECTOR

To SCR Exhaust Harness, C182M

1шт.

2

87695651

LOCKING TAB,Wedge Lock

To SCR Exhaust Harness, C182M

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To SCR Exhaust Harness, C182M

12шт.

3

84190317

WIRE CONNECTOR,Female, 5 Cavities

Upstream NOX Sensor, C186

1шт.

3

47400437

TERMINAL

Upstream NOX Sensor, C186

2шт.

3

47400436

TERMINAL

Upstream NOX Sensor, C186

2шт.

3

84142302

SEAL

Upstream NOX Sensor, C186

4шт.

4

87709793

WIRE CONNECTOR,Female, 2 Cavities

DOC Upstream Temperature Sensor, C189

1шт.

4

47399877

TERMINAL

DOC Upstream Temperature Sensor, C189

2шт.

4

87705976

SEAL

DOC Upstream Temperature Sensor, C189

2шт.

5

87696093

ELEC CONNECTOR,Female, 2 Cavities

To SCR Dosing Bundle Harness, C154M

1шт.

5

87696145

LOCKING TAB

To SCR Dosing Bundle Harness, C154M

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

To SCR Dosing Bundle Harness, C154M

2шт.

6

84062580

CONNECTOR, ELEC

To SCR WEMA Bundle Harness, C185M

1шт.

6

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

To SCR WEMA Bundle Harness, C185M

3шт.

6

82012084

SEAL,1.4mm ID

To SCR WEMA Bundle Harness, C185M

3шт.

7

84152570

ELEC CONNECTOR,Female, 12 Cavities

DEF Supply Module, C190

1шт.

7

84567010

COVER

DEF Supply Module, C190

1шт.

7

84129571

PLUG

DEF Supply Module, C190

4шт.

7

47399882

TERMINAL

DEF Supply Module, C190

8шт.

7

84129570

SEAL

DEF Supply Module, C190

8шт.

8

87694153

CONTACT HOUSING,Female, 4 Cavities

To SCR DEF Quality Sensor Harness, C181M

1шт.

8

84074640

LOCKING TAB,Wedge Lock

To SCR DEF Quality Sensor Harness, C181M

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To SCR DEF Quality Sensor Harness, C181M

4шт.

9

87696547

ELEC CONNECTOR,Female, 2 Cavities

Engine BUS Terminator, C169

1шт.

9

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge, Engine BUS Terminator, C169

1шт.

9

223951A1

PIN

Engine BUS Terminator, C169

2шт.

9

84539353

WIRE CONNECTOR

Terminator, Engine BUS Terminator, C169

1шт.

10

87426768

MULTIPOLE CONNECTOR,Male, 29 Pole

To Engine Harness, C195F

1шт.

10

84068583

PLUG,12 - 16 Ga, White

To Engine Harness, C195F

6шт.

10

84807680

PLUG

To Engine Harness, C195F

3шт.

10

87704524

ELEC CONNECTOR,Pin, Size 12

To Engine Harness, C195F

2шт.

10

87695623

ELEC. TERMINAL PIN

To Engine Harness, C195F

15шт.

10

87696141

TERMINAL

To Engine Harness, C195F

3шт.

11

84146685

WIRE CONNECTOR,Female, 3 Cavities

DEF Tank Heater Valve, C197

1шт.

11

84129571

PLUG

DEF Tank Heater Valve, C197

1шт.

11

84152576

TERMINAL

DEF Tank Heater Valve, C197

2шт.

11

84129570

SEAL

DEF Tank Heater Valve, C197

2шт.

Выбрано товаров: 39
