Запчасти Case IH STEIGER 620 (55.518.AW[03]) - VAR - 420371, 449059, 449489 - LOWER WINDSHIELD WIPER, LUXURY CAB (55) - ELECTRICAL SYSTEMS

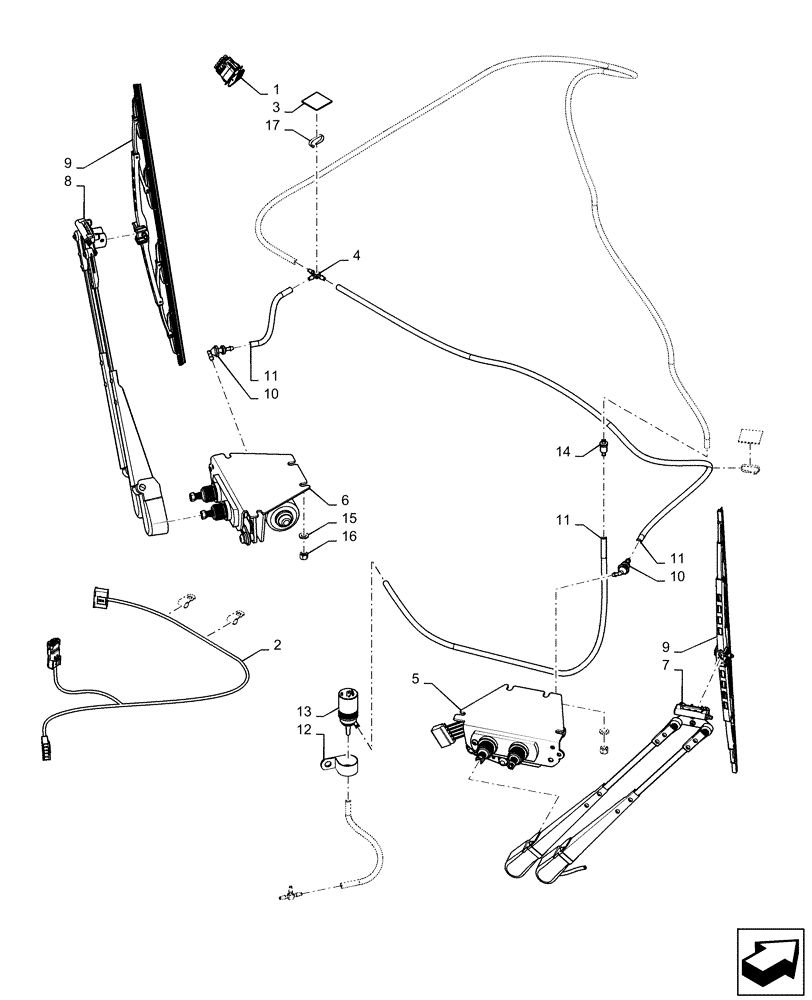

Схема запчастей Case IH STEIGER 620 - (55.518.AW[03]) - VAR - 420371, 449059, 449489 - LOWER WINDSHIELD WIPER, LUXURY CAB (55) - ELECTRICAL SYSTEMS
1
12
10
9
11
7
5
11
9
16
3
13
4
6
15
10
14
2
8
11
17

Артикул

Название

Примечание

Количество

1

86989939

WINDSHIELD WIPER SWI

Rear Wiper

1шт.

2

84386884

WIRE HARNESS

Deluxe Wiper

1шт.

3

22-823

MOUNT

Mount

2шт.

4

31-2363

TEE

Fitting

2шт.

5

84386863

WIPER MOTOR,12V

Front Lower, LH

1шт.

6

84386864

WIPER MOTOR,12V

Front Lower, RH

1шт.

7

84211824

WIPER ARM,Dual, 500mm L

20"

1шт.

8

84211824

WIPER ARM,Dual, 500mm L

20"

1шт.

9

84394223

WIPER

26"

2шт.

10

84369351

ELBOW,90 Degree

Connector

2шт.

11

4-1056

HOSE

Bulk 0.188" I.D., Cut To Length As Required

1шт.

12

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

1шт.

13

47626001

PUMP

Washer

1шт.

14

84037530

VALVE

Check

1шт.

15

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

2шт.

Выбрано товаров: 17
