Запчасти Case IH STEIGER 620 (05.100.01) - INITIAL STOCKING LIST (LIST A), 540, 580, 620 (05) - SERVICE & MAINTENANCE

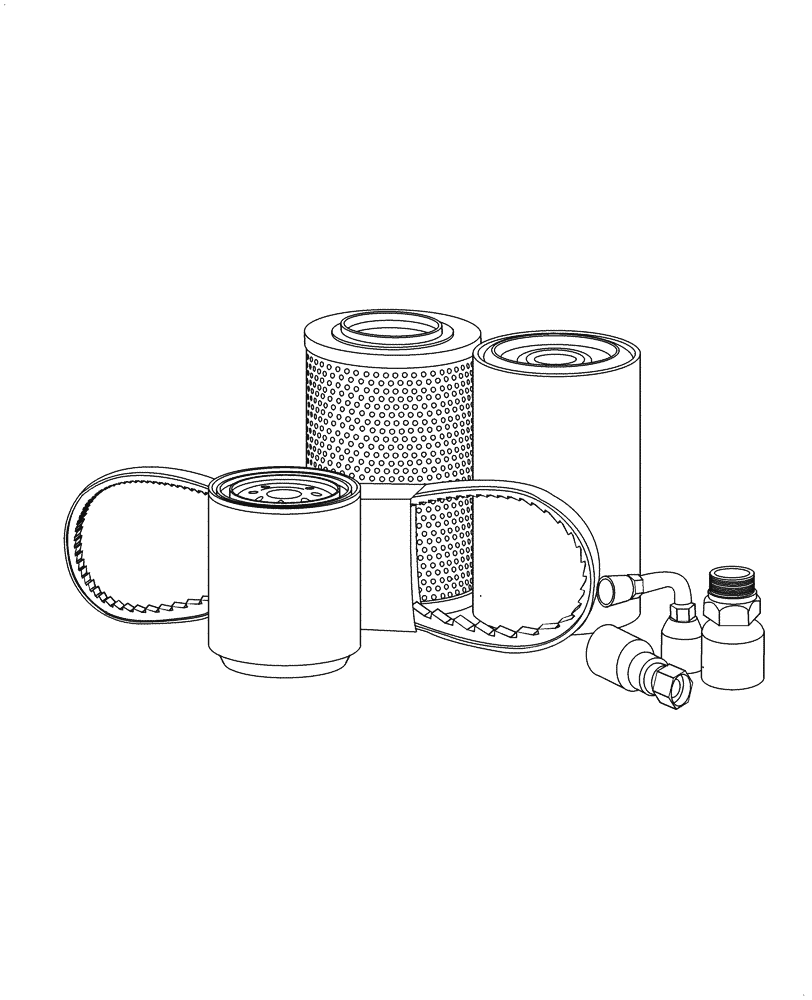

Схема запчастей Case IH STEIGER 620 - (05.100.01) - INITIAL STOCKING LIST (LIST A), 540, 580, 620 (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

87356545

AIR FILTER

Primary Air

1шт.

2

87356547

AIR FILTER

Secondary Air

1шт.

3

84211797

AIR FILTER

Cab Air, Roof

1шт.

4

386751A1

CAB FILTER

HVAC, Recirculated Air

1шт.

5

87684088

CAB FILTER,CAB

1шт.

6

87267363

AIR FILTER,Cab Charcoal Recirculation

1шт.

7

283094A1

FILTER

Cab Recirculation

1шт.

8

84572228

ELEMENT

Engine Oil, 13L

1шт.

9

47364243

FILTER

Main DEF Denox

1шт.

10

84367903

FILTER

DEF Inline Mesh Filter, Serial Range: ZEF300001-ZEF303000

1шт.

11

47681405

FILTER ASSY,70 Micron

DEF Tank Level Sensor, Start Serial: ZEF303001

1шт.

12

47680524

FILTER, DEF,100 Micron

DEF Tank Pre-Fill, Start Serial: ZFF304110

2шт.

13

84423586

FUEL FILTER

Pre - Fuel, 13L

1шт.

14

5801516883

ELEMENT

Fuel, 13L

1шт.

15

84412494

BREATHER

Fuel Tank

1шт.

16

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

Spin On Assembly, Transmission Oil

1шт.

17

84196445

HYDRAULIC OIL FILTER

Spin On Assembly

1шт.

18

5801470547

ELEMENT

Crankcase, 13L

1шт.

19

47452304

BELT

Poly - V, 13L

1шт.

Выбрано товаров: 19
