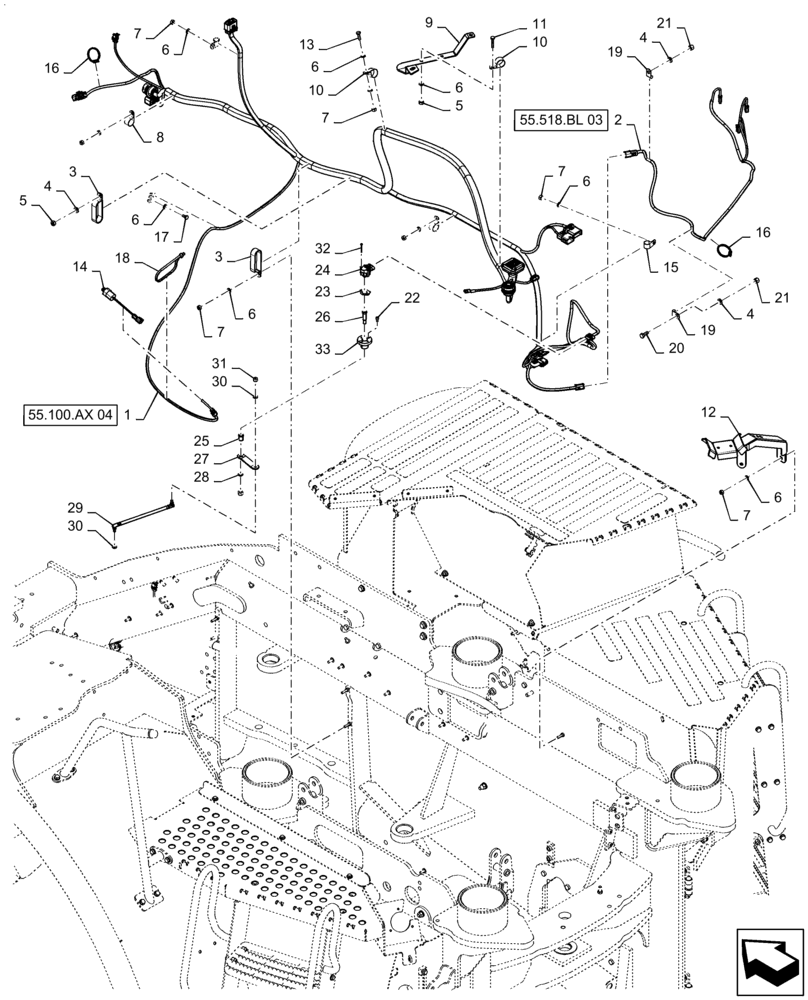

Запчасти Case IH STEIGER 620 (55.100.AX[03]) - FRONT FRAME HARNESS MOUNTING, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS

1

47694010

WIRE HARNESS

Front Frame

1шт.

2

47706520

WIRE HARNESS

Washer Bottle

1шт.

3

87561071

CLAMP

Double

3шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

6

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

20шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

16шт.

8

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

3шт.

9

84427703

BRACKET

Harness, Rear Cab

1шт.

10

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

2шт.

11

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

12

84331723

BRACKET, SUPPORTING

Harness

1шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

14

47655851

PRESSURE SWITCH

Front Axle Lube

1шт.

15

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

17

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

19

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

22

63582

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

23

47704915

GASKET

Steering Angle Sensor

1шт.

24

47700274

SENSOR

Steering Angle

1шт.

25

47876147

BUSHING,12.02mm ID x 20mm L

1шт.

26

47889900

SHAFT

Rotary Sensor

1шт.

27

47890369

BRACKET

Steering Angle Sensor

1шт.

28

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

29

47698979

ROD,247.2mm L

1шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

832-10406

NUT,M6 x 1, Cl 8

1шт.

32

47878197

SCREW,Torx, Pan HD, M4 x 35mm, Cl 4.8

2шт.

33

47882131

COLLAR

Steering Angle Sensor

1шт.
