Запчасти Case IH STEIGER 620 (55.035.AF[02]) - VAR - 424826 - REMOTE CONTROL VALVE SWITCH, 6 SPOOL (55) - ELECTRICAL SYSTEMS

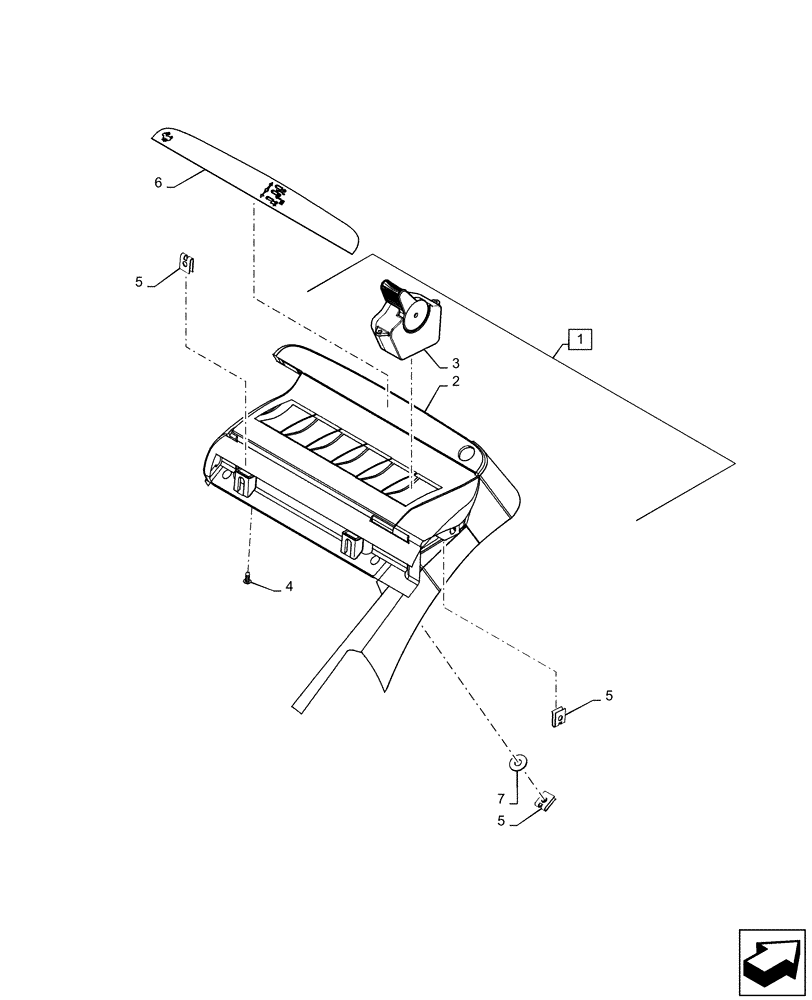

Схема запчастей Case IH STEIGER 620 - (55.035.AF[02]) - VAR - 424826 - REMOTE CONTROL VALVE SWITCH, 6 SPOOL (55) - ELECTRICAL SYSTEMS
5
7
5
5
4
1
6
3
2

Артикул

Название

Примечание

Количество

1

84235842

SET OF LEVERS

Rear Remote Controls, 6 Spools, Incl 2 - 4; Incl Wire Harnesses, NSS

1шт.

2

84235841

PANEL

Rear Remote Controls, 6 Spools

1шт.

3

87486098

ROCKER SWITCH

Rear Remote

6шт.

4

50631

SCREW,Self Tapping, M6 x 0.5" OAL

12шт.

5

84148337

SPRING NUT

4.8

5шт.

6

84126455

DECAL

Rear Remote Control, 6 Spool

1шт.

7

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

Выбрано товаров: 7
