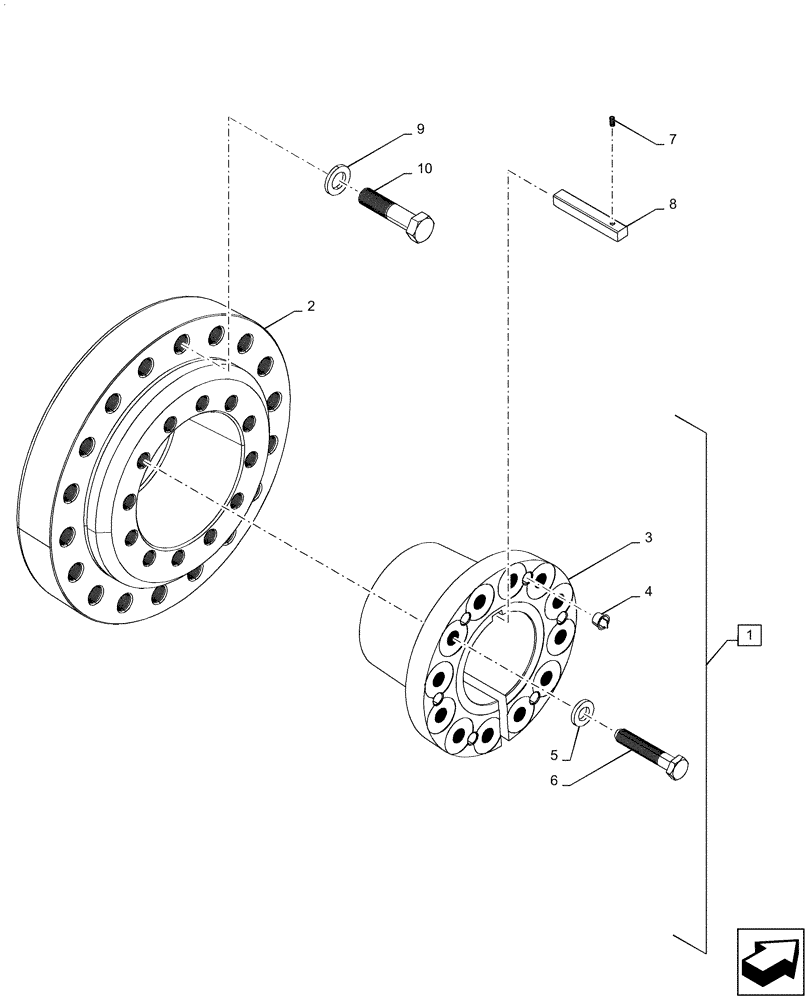

Запчасти Case IH STEIGER 620 (44.511.AD[04]) - WHEEL HUB, 600 SERIES AXLE (44) - WHEELS

1

87473509

HUB

Wheel, 140mm Axle, Incl 2 - 6

1шт.

2

87698871

HUB

Wheel

1шт.

3

87698873

BUSHING

140mm Axle

1шт.

4

303401A1

PLUG

20mm Hole

8шт.

5

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

6

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

12шт.

7

38-11608

LOCK PIN,1/4" x 1/2", Slotted

1шт.

8

A63219

KEY

124mm Long

1шт.

9

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

18шт.

10

827-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

18шт.
