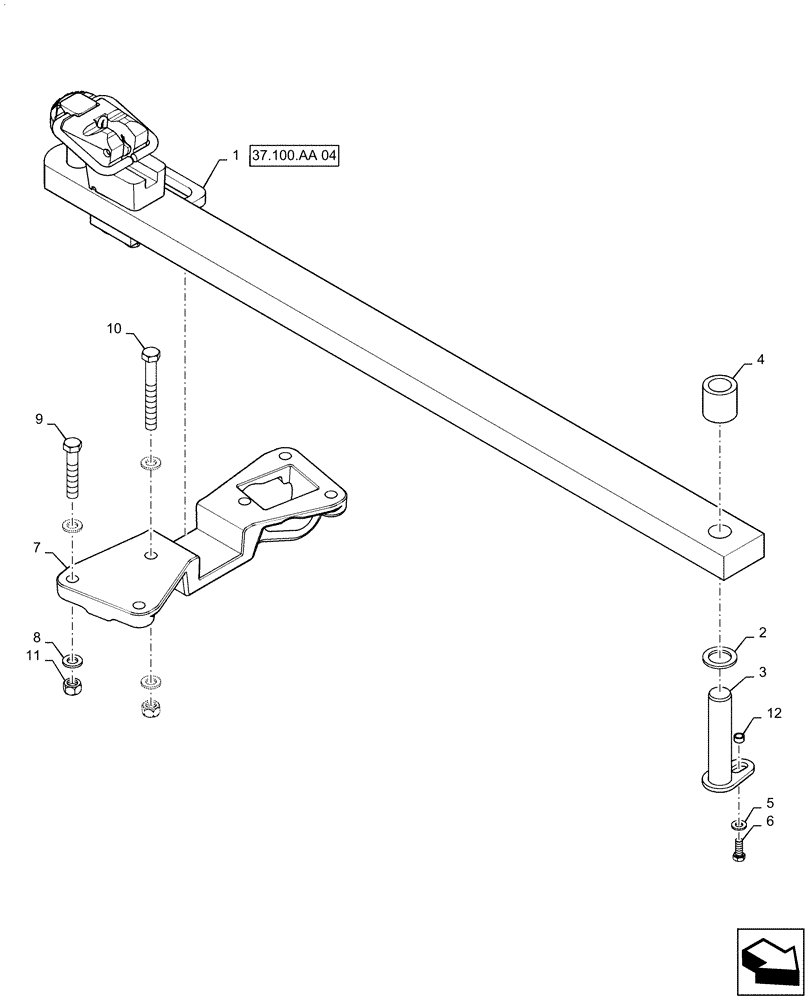

Запчасти Case IH STEIGER 620 (37.100.AA[03]) - HEAVY DUTY DRAWBAR, CAST HANGER, 550, 580, 600, 620 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87609236

DRAWBAR

Heavy Duty

1шт.

2

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

1.763" x 2.75" x 0.25"

1шт.

3

87524404

PIN,50.65mm OD x 252mm L

Drawbar Mounting

1шт.

4

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

54mm x 76.2mm x 76mm

1шт.

5

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

6

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

7

87571551

STRAP

Hammerstrap Support

1шт.

8

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

9

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

4шт.

10

827-24190

BOLT,Hex, M24 x 3 x 190mm, Cl 10.9

2шт.

11

829-1424

NUT,M24, Cl 10

6шт.

12

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

16.7mm x 22.2mm x 11.2mm

1шт.
