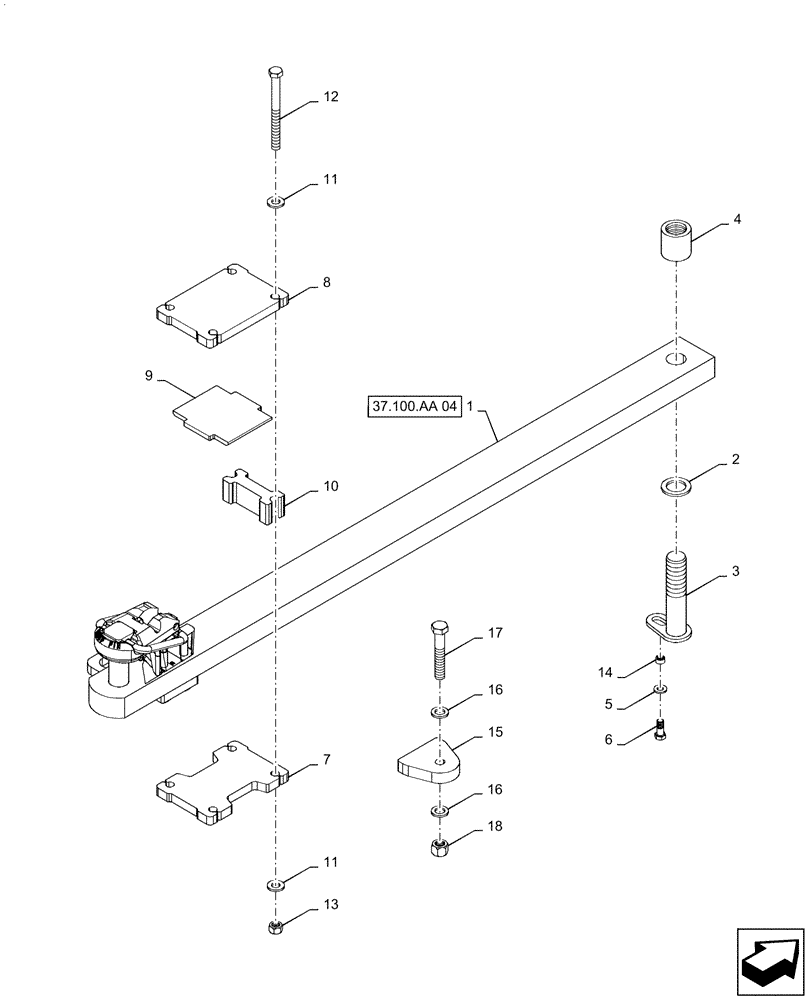

Запчасти Case IH STEIGER 620 (37.100.AA[01]) - HEAVY DUTY DRAWBAR, BOLTED STOPS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87609236

DRAWBAR

Heavy Duty

1шт.

2

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

1.763" x 2.75" x 0.25"

1шт.

3

87524404

PIN,50.65mm OD x 252mm L

Drawbar Mounting

1шт.

4

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

54mm x 76.2mm x 76mm

1шт.

5

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

6

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

7

87567060

PLATE

Drawbar Bottom

1шт.

8

87564455

PLATE

Drawbar Top

1шт.

9

87746694

WEAR PAD

200mm x 188mm

1шт.

10

87564454

SPACER

Drawbar

2шт.

11

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

8шт.

12

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

4шт.

13

829-1420

NUT,M20, Cl 10

4шт.

14

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

16.7mm x 22.2mm x 11.2mm

1шт.

15

87725363

PLATE

Drawbar Stop

2шт.

16

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

17

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

2шт.

18

832-10424

NUT,M24 x 3, Cl 8

2шт.
