Запчасти Case IH STEIGER 620 (35.733.AC[05]) - CENTER AXLE LUBRICATION LINE, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

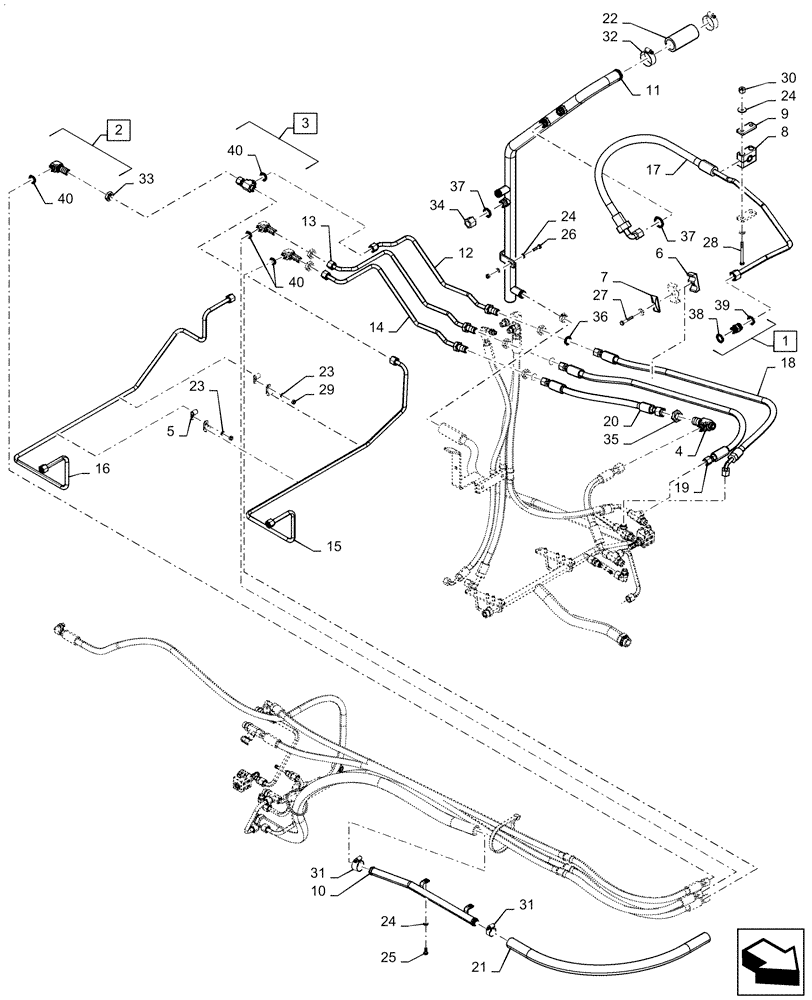

Схема запчастей Case IH STEIGER 620 - (35.733.AC[05]) - CENTER AXLE LUBRICATION LINE, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
25
24
38
40
9
6
19
22
29
11
4
1
30
17
40
14
23
31
18
23
10
33
26
13
31
39
32
34
21
24
5
2
7
40
37
16
20
12
24
35
37
28
8
3
36
7
15
27

Артикул

Название

Примечание

Количество

1

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 38 - 39

1шт.

2

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 40

3шт.

3

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 40

1шт.

4

84191902

RUN TEE

ORFS 16MM

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

6

50-2551T1

CLAMP

Tube Clamp

4шт.

7

50-2533T1

PLATE

Plate Cover

2шт.

8

84341623

CLAMP,16mm ID

Tube Clamp Isolation

1шт.

9

367658A1

PLATE

Clamp Cover

2шт.

10

84214017

TUBE

Axle Drain, Rear

1шт.

11

84281569

RIGID TUBE

Main Axle Drain

1шт.

12

84281559

RIGID TUBE

Park Brake Pressure

1шт.

13

84281561

RIGID TUBE

Service Brake Pressure

1шт.

14

84281563

RIGID TUBE

Axle Lube Pressure

1шт.

15

84281565

RIGID TUBE

Park Brake Pressure, WHL

1шт.

16

84215623

TUBE

Steering Drain

1шт.

17

47444999

HYD TUBE

Brake Drain

1шт.

18

84244575

HOSE ASSY.,12.7mm ID x 1280mm L, SAE 100R1

Park Brake, Front

1шт.

19

84244574

HOSE ASSY.

Service Brake

1шт.

20

84244572

HOSE ASSY.

Axle Lube

1шт.

21

31-2755

HOSE,1.00" ID

1шт.

22

1-4571

HOSE

1-1/2" ID x 4-1/2" Long

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

24шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

25

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

26

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

27

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

28

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

31

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

32

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

2шт.

33

701-903

NUT,13/16" - 16

6шт.

34

701-906

CAP,1" - 14

2шт.

35

701-919

BHD LOCK NUT,1" - 14

1шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

38

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

39

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

40

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

Выбрано товаров: 40
