Запчасти Case IH STEIGER 620 (35.733.AC[01]) - FRONT AXLE LUBRICATION LINES, W/O DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

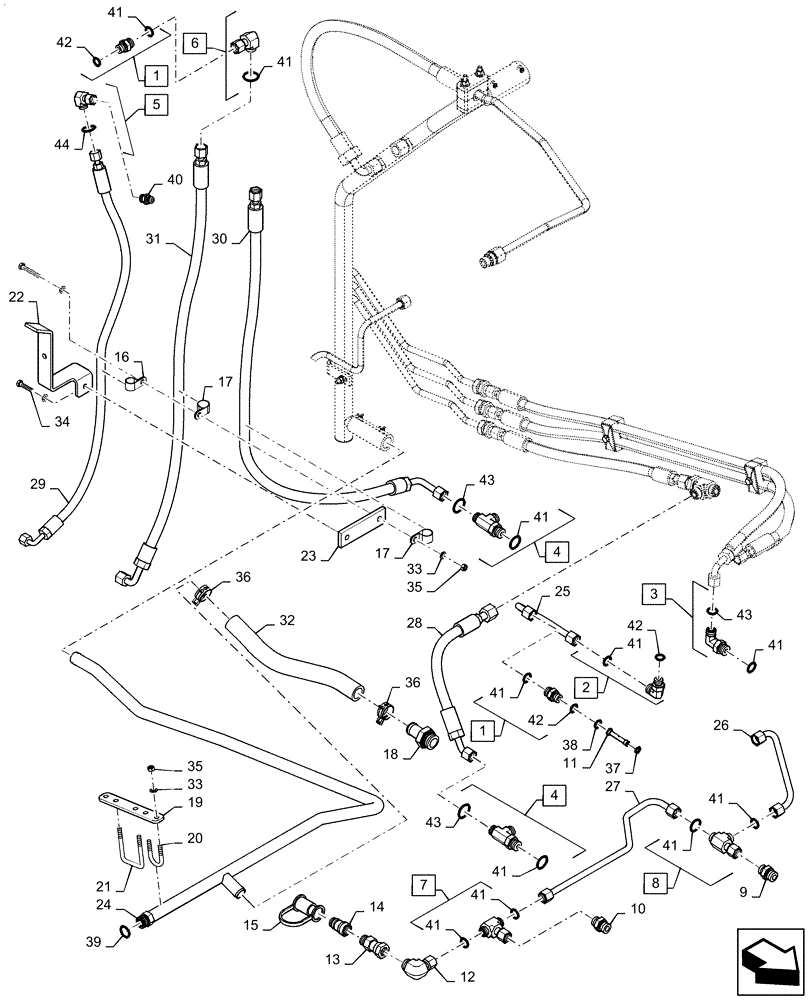

Схема запчастей Case IH STEIGER 620 - (35.733.AC[01]) - FRONT AXLE LUBRICATION LINES, W/O DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
9
26
6
41
19
1
34
35
37
28
41
17
40
7
4
44
2
35
8
24
16
41
10
25
41
41
11
15
36
43
4
27
5
12
36
17
29
13
22
41
20
43
33
1
42
41
30
41
42
14
43
41
32
42
41
18
39
21
38
23
3
33
41
31

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 41 - 42

3шт.

2

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 41 - 42

3шт.

3

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 41, 43

1шт.

4

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 41, 43

2шт.

5

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 44

1шт.

6

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 41

1шт.

7

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 41

1шт.

8

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 41

1шт.

9

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief

1шт.

10

84214146

FITTING

Adapter

1шт.

11

87400028

ORIFICE

Front Pinion Cover

2шт.

12

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

ORFS 90

1шт.

13

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

ORFS SWVL

1шт.

14

392690A1

COUPLING

Male

1шт.

15

399032A1

CAP

Plug Dust

1шт.

16

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

3шт.

17

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

18

390348A1

STEM

Hose Barb

1шт.

19

87535336

BRACKET

Cross Tube

2шт.

20

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

2шт.

21

396490A1

U-BOLT

Rectangular

2шт.

22

84214397

BRACKET, SUPPORTING

Brake Lines

1шт.

23

L50641

CONNECTING STRIP

Return Tube

1шт.

24

84248762

TUBE

Axle Drain, Front

1шт.

25

84214260

TUBE

Axle Lube Crossover

1шт.

26

84214262

TUBE

Axle Lube Crossover

1шт.

27

84214264

TUBE

Axle Lube Crossover

1шт.

28

84244571

HOSE ASSY.,12.7mm ID x 424mm L, SAE 100R1

Axle Lube, Front

1шт.

29

84341616

HOSE ASSY.,9.53mm ID x 1029mm L, SAE 100R17

Brake

1шт.

30

84341619

HOSE ASSY.,12.7mm ID x 1219mm L, SAE 100R17

Brake Signal, WHL

1шт.

31

84341615

HOSE ASSY.,12.7mm ID x 1067mm L, SAE 100R17

Brake Supply

1шт.

32

395933A1

HOSE,1.00" ID x 15.00"

1шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

34

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

35

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

11шт.

36

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

37

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

38

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

40

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

41

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

18шт.

42

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

9шт.

43

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

44

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
