Запчасти Case IH STEIGER 620 (33.202.010[02]) - BRAKE AND CLUTCH PEDAL (BTW ZFF308001 - ZGF309112) (33) - BRAKES & CONTROLS

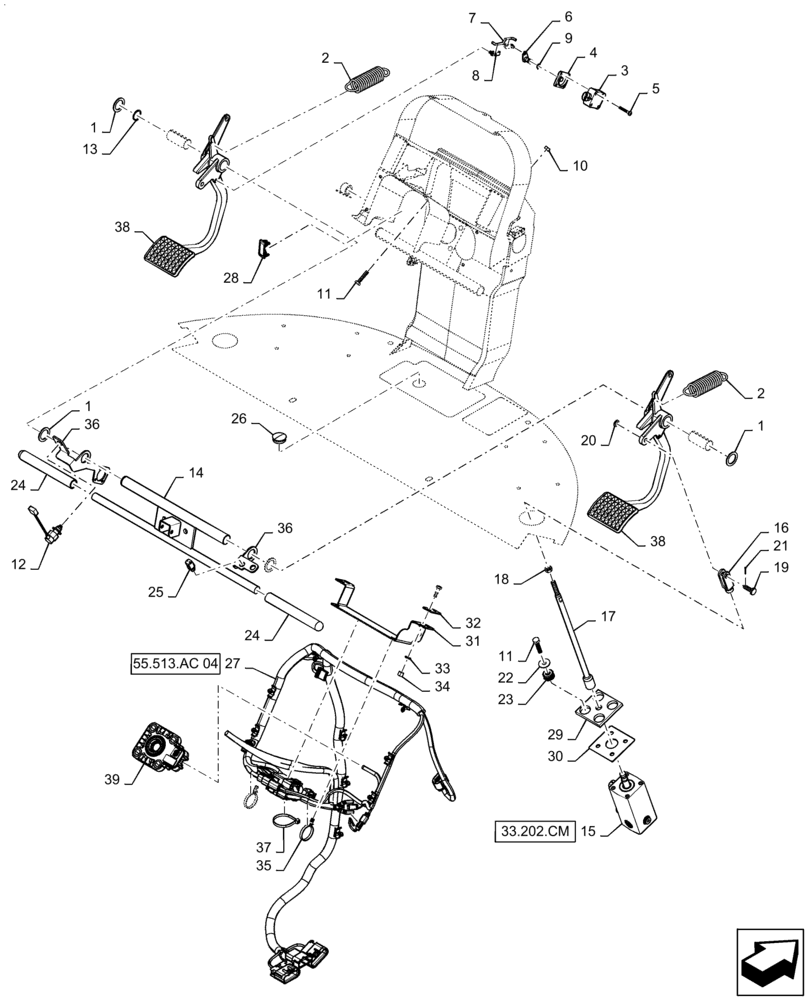

Схема запчастей Case IH STEIGER 620 - (33.202.010[02]) - BRAKE AND CLUTCH PEDAL (BTW ZFF308001 - ZGF309112) (33) - BRAKES & CONTROLS
37
38
30
9
1
1
2
11
34
8
15
38
27
14
2
31
55.513.ac 04
1
20
33.202.cm
26
18
39
6
4
11
12
29
33
7
36
17
35
3
16
23
5
32
19
36
21
13
25
24
22
10
24
28

Артикул

Название

Примечание

Количество

1

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

4шт.

2

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

2шт.

3

283659A1

SENSOR

Clutch Potentiometer

1шт.

4

305155A2

BUSHING

Potentiometer

1шт.

5

840-1530

SCREW,Pan, M5 x 30mm, Cl 4.8

2шт.

6

322409A1

PIN

Potentiometer

1шт.

7

222463A2

LINK

Push/Pull

1шт.

8

60-2404T1

RETAINER

Plastic

2шт.

9

800-1110

SNAP RING,M10, Ext

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

5шт.

12

355341A1

SWITCH

Clutch

1шт.

13

800-1125

SNAP RING,M25, Ext

1шт.

14

47648120

PEDAL

Support

1шт.

15

47648592

BRAKE VALVE

Assembly

1шт.

16

713-1110

CLEVIS

M10 x 40mm

1шт.

17

369851A1

ROD

Brake Valve

1шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

19

729-1030

CLEVIS PIN,M10 x 30

1шт.

20

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

21

733-2512

COTTER PIN,M2.5 x 12

1шт.

22

495-81001

WASHER,5/16"

4шт.

23

434177A1

ISOLATOR

Rubber

4шт.

24

321961A1

MOLDING

Rubber

2шт.

25

279265A2

SWITCH

Brake Light

1шт.

26

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

27

47721244

WIRE HARNESS

Front Dash

1шт.

28

126844A1

PLUG,1.427” x .62” , Plastic

Switch Cover

1шт.

29

84304615

GASKET,8mm Thk

1шт.

30

84342645

MOUNTING PLATE

Brake Valve

1шт.

31

47600705

BRACKET

Dash Harness

1шт.

32

47600703

MOUNTING PLATE

Dash Harness

2шт.

33

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

34

832-10406

NUT,M6 x 1, Cl 8

4шт.

35

87668737

CABLE TIE,203.2mm L, Nylon, Black

Nylon

3шт.

36

281893A1

BEARING

Pedal

2шт.

37

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

38

47632824

PEDAL

Brake/Clutch

2шт.

39

47786983

SENSOR

Steering Angle

1шт.

Выбрано товаров: 39
