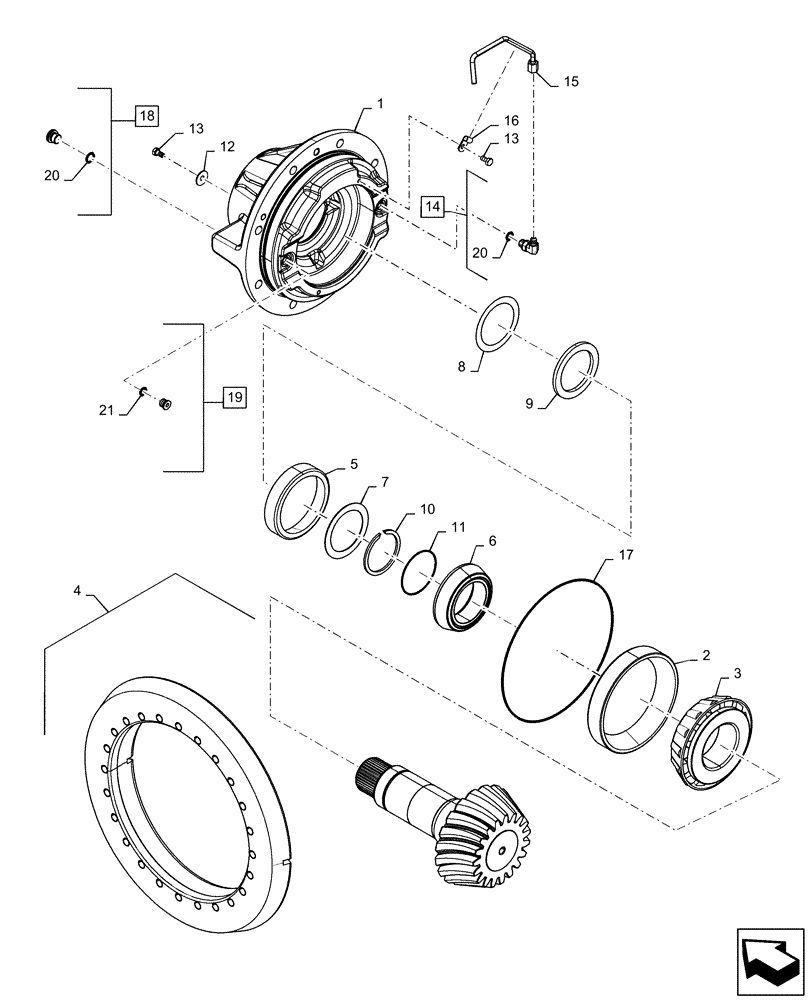

Запчасти Case IH STEIGER 620 (27.106.AE) - REAR AXLE PINION SHAFT (27) - REAR AXLE SYSTEM

1

328422A5

COVER

Pinion Carrier, Rear

1шт.

2

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

3

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

4

87522604

GEAR SET

Bevel and Pinion, Rear

1шт.

5

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

6

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

7

191713A1

SPACER

Retainer, Thin

1шт.

8

191709A1

SHIM,0.076mm Thk

1шт.

8

191711A1

SHIM,0.101mm Thk

1шт.

8

191712A1

SHIM,0.130mm Thk

1шт.

8

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

9

228968A2

SPACER

Retainer, Thick

1шт.

10

229515A2

RING, SNAP

Retainer, 4mm

1шт.

11

87432424

OIL SEAL

Pinion Input Shaft

1шт.

12

95-31038

WASHER,5/16"

3шт.

13

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

14

86985636

ELBOW

1.7mm Orifice, Incl 20

1шт.

15

313377A1

PIPE

Assembly, Pinion Mesh, Internal

1шт.

16

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

17

238-5276

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

1шт.

18

221578A1

PLUG,M18 x 1.5 ORB

Incl 20

1шт.

19

218-5209

PLUG,Hex, 9/16"-18 ORB

Incl 21

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

21

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
