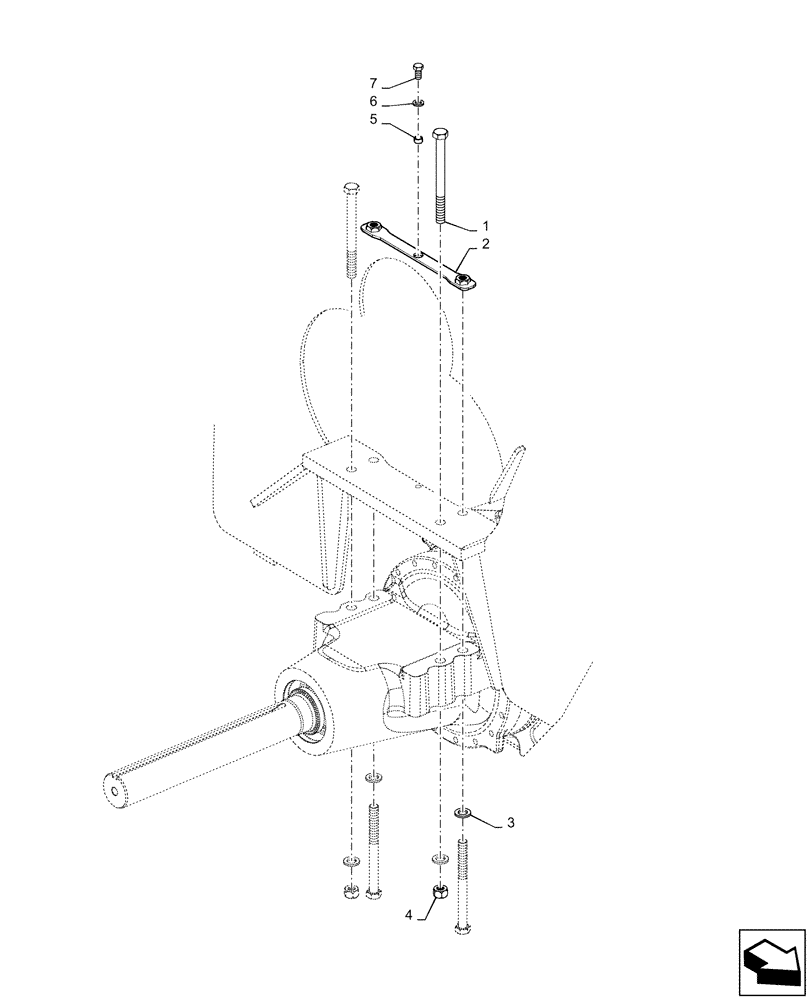

Запчасти Case IH STEIGER 620 (27.100.AK[01]) - REAR AXLE MOUNTING (27) - REAR AXLE SYSTEM

1

827-24270

BOLT,Hex, M24 x 3 x 270mm, Cl 10.9

8шт.

2

296050A1

PLATE

Axle Mounting

2шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

8шт.

4

829-1424

NUT,M24, Cl 10

4шт.

5

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

7

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.
