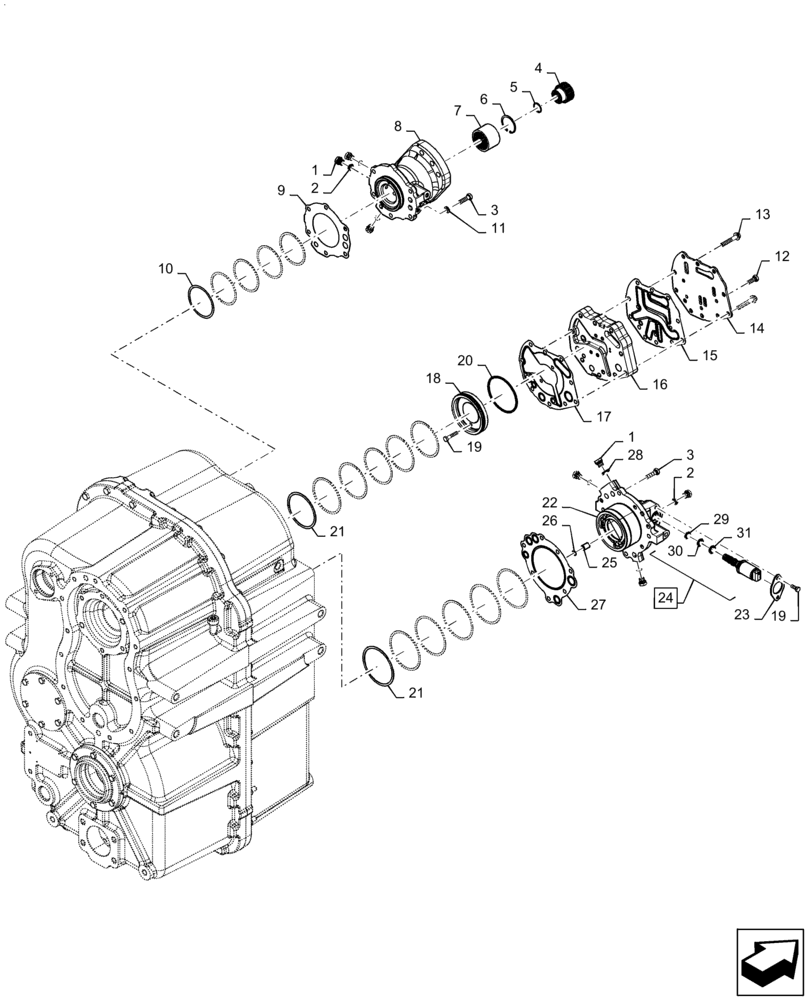

Запчасти Case IH STEIGER 620 (21.113.AD[13]) - TRANSMISSION, FRONT RETAINER, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, ASN ZFF308001 (21) - TRANSMISSION

1

220064A1

PLUG,M14 x 1.5, ORB

7шт.

2

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

7шт.

3

86637966

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

25шт.

4

362566A1

ADAPTER

Pump

1шт.

5

800-2128

SNAP RING,M28, Int

1шт.

6

428681A1

RING, SNAP

1шт.

7

362567A1

COUPLING

Pump

1шт.

8

84315338

RETAINER

2nd Shaft Bearing

1шт.

9

362569A1

GASKET

2nd Retainer

1шт.

10

47403798

SHIM,0.2mm Thk

1шт.

10

47403799

SHIM,0.25mm Thk

1шт.

10

359244A1

SHIM,0.3mm Thk

1шт.

10

47403801

SHIM,0.35mm Thk

1шт.

10

359251A1

SHIM,0.5mm Thk

1шт.

11

892-11010

LOCK WASHER,M10

6шт.

12

412159

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

13

84315320

BOLT

Ditch Plate

4шт.

14

47582448

PLATE

Valve

1шт.

15

84315323

GASKET

Valve Plate

1шт.

16

47849476

PLATE

Ditch

1шт.

17

84315331

GASKET

3rd

1шт.

18

84315337

RETAINER

3rd Shaft Bearing

1шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

428149A1

O-RING

1шт.

21

47402749

SHIM,0.2mm Thk

1шт.

21

47402759

SHIM,0.25mm Thk

1шт.

21

427566A1

SHIM,0.3mm Thk

1шт.

21

47402839

SHIM,0.35mm Thk

1шт.

21

427567A1

SHIM,0.5mm Thk

1шт.

21

427568A1

SHIM,0.7mm Thk

1шт.

22

47582452

RETAINER

4th Shaft Bearing, PS6

1шт.

23

87351402

PLATE

Valve Retaining

1шт.

24

84173878

SOLENOID

PWM, Incl 29 - 31

1шт.

25

47936347

CHECK VALVE,6.35mm

1шт.

26

100-2156

SNAP RING,0.562", Int, #56

1шт.

27

84315326

GASKET

1шт.

28

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

29

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.

30

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

31

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.
