Запчасти Case IH STEIGER 600 (21.155.06) - POWER SHIFT TRANSMISSION - 2ND SHAFT, PS6, 9C (21) - TRANSMISSION

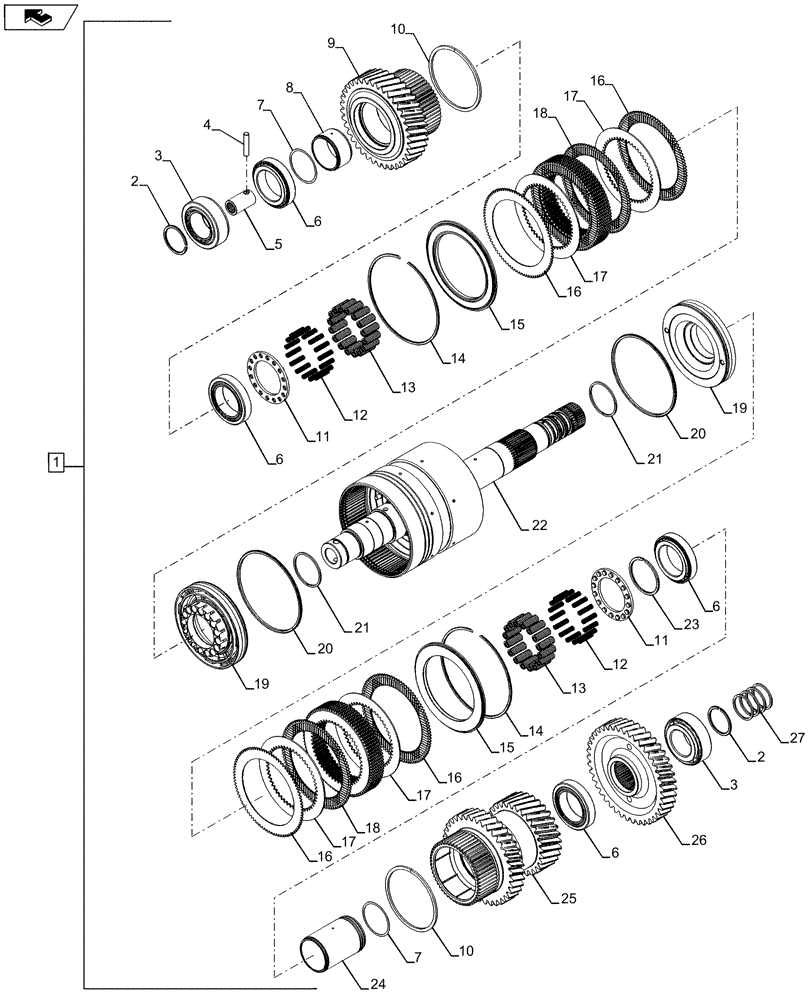

Схема запчастей Case IH STEIGER 600 - (21.155.06) - POWER SHIFT TRANSMISSION - 2ND SHAFT, PS6, 9C (21) - TRANSMISSION
26
19
17
7
11
20
13
12
6
14
19
20
16
13
10
15
2
home
1
17
21
16
15
16
24
23
12
21
14
7
2
25
5
3
18
18
16
17
4
11
9
6
3
6
22
27
10
17
6
8

Артикул

Название

Примечание

Количество

1

84314687

SHAFT

2nd, 7 Clutch, SP4, 9C, Incl 2 - 21, 23 - 27

1шт.

2

352378A1

RING, SNAP

2.5mm, 0.098

1шт.

2

352394A1

RING, SNAP

2.6mm, 0.102

1шт.

2

352397A1

RING, SNAP

2.7mm, 0.106

1шт.

2

352400A1

RING, SNAP

2.8mm, 0.110

1шт.

2

352815A1

RING, SNAP

2.9mm, 0.114

1шт.

2

352816A1

RING, SNAP

3.0mm, 0.118

1шт.

3

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

Taper Roller

2шт.

4

428674A1

DOWEL

1шт.

5

428673A1

SPLINED COUPLING

Pump Sleeve

1шт.

6

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Taper Roller

4шт.

7

352818A1

SHIM,0.15mm Thk

1шт.

7

352819A1

SHIM,0.18mm Thk

1шт.

7

352820A1

SHIM,0.20mm Thk

1шт.

7

352821A1

SHIM,0.25mm Thk

1шт.

7

352822A1

SHIM,0.30mm Thk

1шт.

7

352823A1

SHIM,0.50mm Thk

1шт.

8

87350273

SPACER

2R Bearing

1шт.

9

NSS

NOT SOLD SEPARAT

2R, Incl in 1

1шт.

10

87431394

RING

Seal

2шт.

11

87350230

PLATE

Spring Return

2шт.

12

84314631

SPRING

Return

32шт.

13

84314633

SPRING

Return

32шт.

14

352829A1

RING, SNAP

2шт.

15

87431390

CLUTCH PLATE

Clutch End

2шт.

16

352831A1

CLUTCH DISC

7 Faced

4шт.

17

S2080S00F

CLUTCH DISC,2.4mm Thk

Steel, 2.40mm, 8.5C Only

20шт.

17

S2090S00F

CLUTCH DISC,2.1mm Thk

Steel, 2.10mm, 8C & 8.5C

20шт.

18

352832A1

CLUTCH DISC

7 Faced

18шт.

19

84314641

PISTON

7 Clutch

2шт.

20

87431391

RING

D-Ring

2шт.

21

S2610S00F

RING

Seal

2шт.

22

47420101

SHAFT

2nd Drum Assy, PS6 Transmission

1шт.

23

428163A1

RING, SNAP

Retaining

1шт.

24

NSS

NOT SOLD SEPARAT

2F Bearing, Incl in 1

1шт.

25

47420110

GEAR

2M

1шт.

26

NSS

NOT SOLD SEPARAT

Gear, Incl in1

1шт.

27

S3070S00F

RING

Seal

4шт.

Выбрано товаров: 38
