Запчасти Case IH STEIGER 600 (21.155.04[02]) - POWER SHIFT TRANSMISSION - 1ST INPUT SHAFT, PS6, 9C (21) - TRANSMISSION

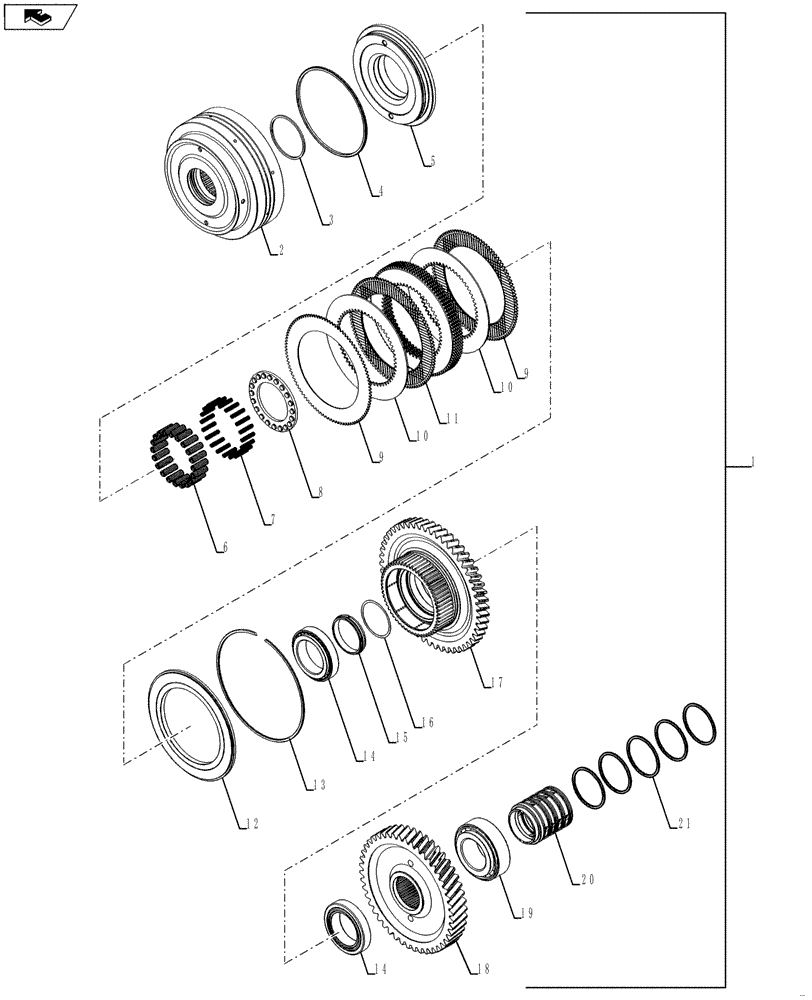

Схема запчастей Case IH STEIGER 600 - (21.155.04[02]) - POWER SHIFT TRANSMISSION - 1ST INPUT SHAFT, PS6, 9C (21) - TRANSMISSION
11
17
1
13
12
21
19
9
10
6
home
3
14
7
4
15
14
8
5
10
9
2
16
20
18

Артикул

Название

Примечание

Количество

1

84314626

SHAFT

1st, 7" Clutch, 9C, Incl 2 - 29 & Fig 21.155.04(01)

1шт.

2

84314648

DRUM

1F Clutch

1шт.

3

S5510S00F

RING

Seal

1шт.

4

87431391

RING

D-Ring

1шт.

5

84314650

PISTON

1F Clutch

1шт.

6

358971A1

SPRING

Return

20шт.

7

84314653

SPRING

Return

20шт.

8

87552056

RETAINER

Spring

1шт.

9

370555A1

CLUTCH DISC

Faced

2шт.

10

S4070S00F

CLUTCH DISC,2.4mm Thk

Steel, 2.40mm

5шт.

10

S4110S00F

CLUTCH DISC,2.1mm Thk

Steel, 2.10mm

5шт.

11

370556A1

CLUTCH DISC

8" Faced

4шт.

12

442803A1

PLATE

Clutch End

1шт.

13

428108A1

RING, SNAP

RING SNAP

1шт.

14

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Taper Roller

2шт.

15

359203A1

SPACER

1F Bearing

1шт.

16

352818A1

SHIM,0.15mm Thk

1шт.

16

352819A1

SHIM,0.18mm Thk

1шт.

16

352820A1

SHIM,0.20mm Thk

1шт.

16

352821A1

SHIM,0.25mm Thk

1шт.

16

352822A1

SHIM,0.30mm Thk

1шт.

16

352823A1

SHIM,0.50mm Thk

1шт.

17

84314657

GEAR

1F

1шт.

18

84314673

GEAR

Drive

1шт.

19

87431397

ROLLER BEARING,60mm ID x 110mm OD x 38mm W

Taper Roller

1шт.

20

84314680

CARRIER

Piston Ring

1шт.

21

S4150S00F

RING

Seal

5шт.

Выбрано товаров: 27
