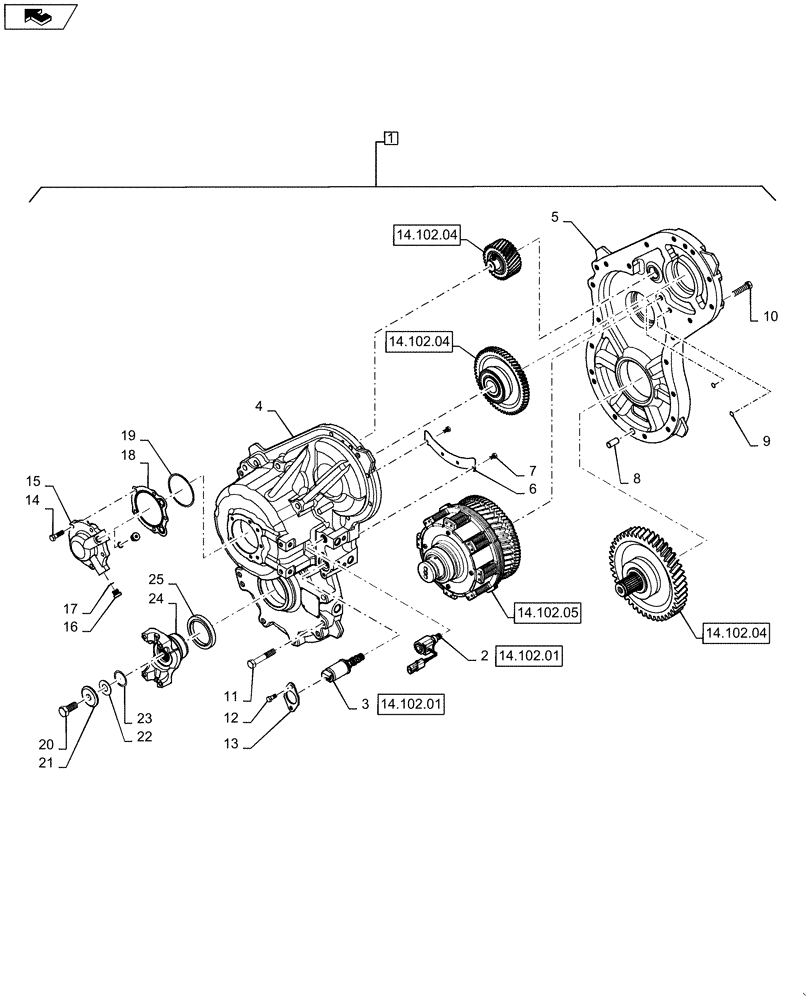

Запчасти Case IH STEIGER 600 (14.102.03) - HYDRAULIC PUMP DRIVE WITH PTO - HOUSING COVERS, SERVO, AND YOKE (14) - MAIN GEARBOX & DRIVE

1

84317510

DRIVE

PTO W/ Hydraulic Pump, Incl 2 - 25

1шт.

2

84315880

SOLENOID VALVE

1шт.

3

84173878

SOLENOID

Proportional PWM

1шт.

4

84315884

HOUSING

PTO Rear

1шт.

5

84315886

HOUSING

PTO Front

1шт.

6

84315889

GUTTER

PTO

1шт.

7

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

8

427530A1

DOWEL,14mm OD x 31mm L

Pin

2шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

10

514-855

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

6шт.

11

514-847

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

4шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

13

87351402

PLATE

Valve Retainer

1шт.

14

84315890

BOLT

10-32

5шт.

15

84315899

CASE

PTO Servo

1шт.

16

84315898

PLUG

M14 W/ O-ring

2шт.

17

84315895

O-RING

M14

2шт.

18

84315894

GASKET

PTO Servo

1шт.

19

S9910S00F

SHIM,0.1mm Thk

1шт.

19

S9920S00F

SHIM,0.3mm Thk

1шт.

19

S9930S00F

SHIM,0.5mm Thk

1шт.

19

S9940S00F

SHIM,0.7mm Thk

1шт.

20

514-1021

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

1шт.

21

S8860S00F

THRUST WASHER

Retaining

1шт.

22

S9950S00F

SHIM,0.1mm Thk

1шт.

22

S9960S00F

SHIM,0.31mm Thk

1шт.

22

S9970S00F

SHIM,0.51mm Thk

1шт.

22

S9980S00F

SHIM,0.71mm Thk

1шт.

23

375512A1

O-RING

PTO Yoke

1шт.

24

398447A1

YOKE

PTO 6C

1шт.

25

S8820S00F

OIL SEAL

1шт.
