(14.102.02[02]) - HYDRAULIC PUMP DRIVE WITH PTO - AUXILIARY DRIVE COVER

Запчасти Case IH STEIGER 600 (14.102.02[02]) - HYDRAULIC PUMP DRIVE WITH PTO - AUXILIARY DRIVE COVER (14) - MAIN GEARBOX & DRIVE

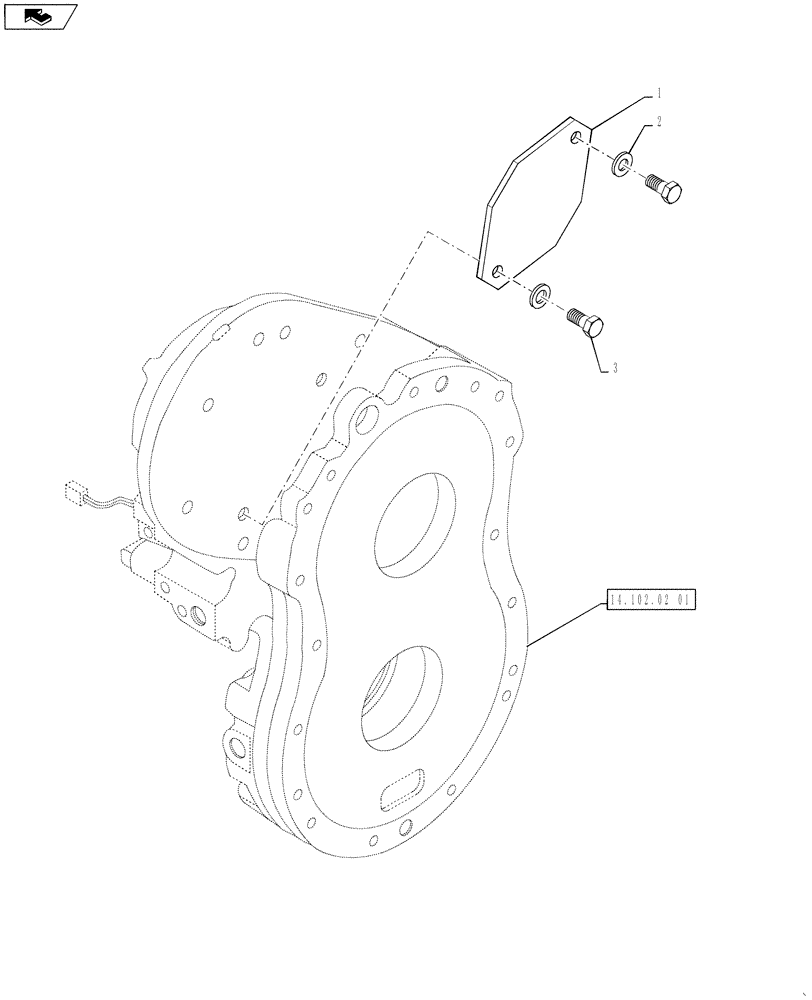

Схема запчастей Case IH STEIGER 600 - (14.102.02[02]) - HYDRAULIC PUMP DRIVE WITH PTO - AUXILIARY DRIVE COVER (14) - MAIN GEARBOX & DRIVE
14.102.02 01
2
1
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

90390

COVER

PTO Aux Drive, Serial Range: -ZCF130899

1шт.

1

47412194

COVER

COVER PTO Aux Drive, Start Serial: ZCF130900

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 4
