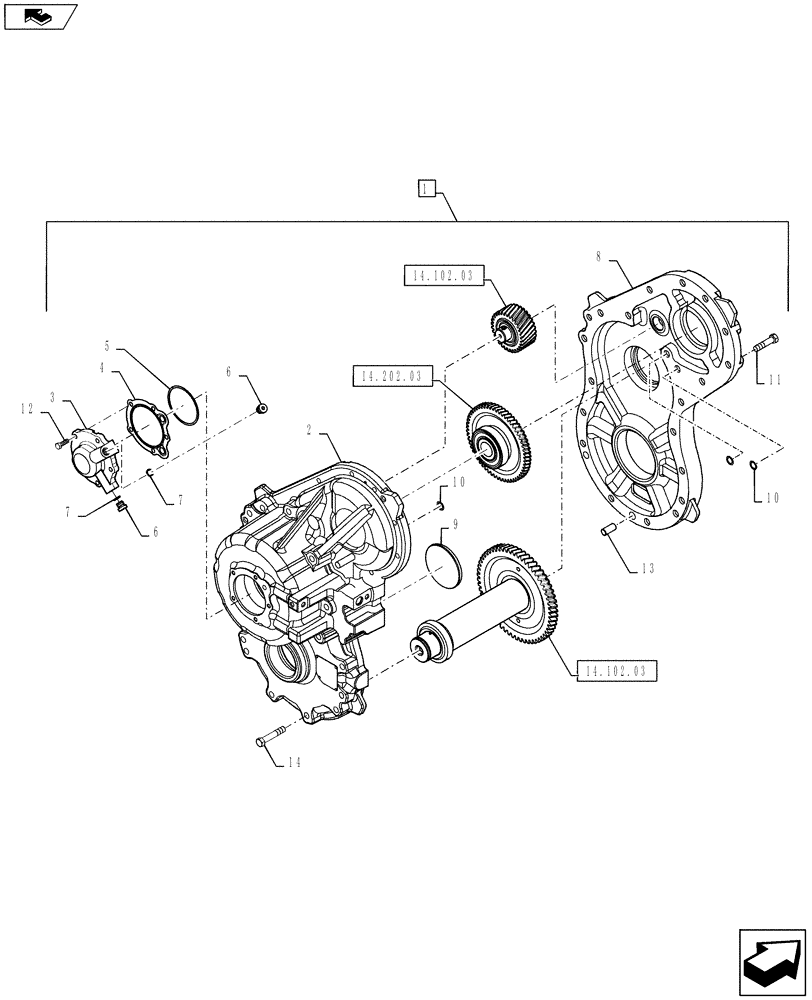

Запчасти Case IH STEIGER 600 (14.102.02[01]) - HYDRAULIC PUMP DRIVE WITHOUT PTO - HOUSING COVERS AND SERVO (14) - MAIN GEARBOX & DRIVE

1

84317512

TRANSMISSION

Complete PTO ASSY, Incl 2 - 14

1шт.

2

84315885

HOUSING

PTO Rear

1шт.

3

84315899

CASE

Case, PTO Servo

1шт.

4

84315894

GASKET

PTO Servo

1шт.

5

S9910S00F

SHIM,0.1mm Thk

1шт.

5

S9920S00F

SHIM,0.3mm Thk

1шт.

5

S9930S00F

SHIM,0.5mm Thk

1шт.

5

S9940S00F

SHIM,0.7mm Thk

1шт.

6

84315898

PLUG

M14 with O-Ring

2шт.

7

84315895

O-RING

M14

2шт.

8

84315886

HOUSING

PTO Front

1шт.

9

87445163

SEAL

Cap

1шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

514-855

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

12

84315890

BOLT

10-32

6шт.

13

427530A1

DOWEL,14mm OD x 31mm L

Pin

2шт.

14

514-847

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

4шт.
