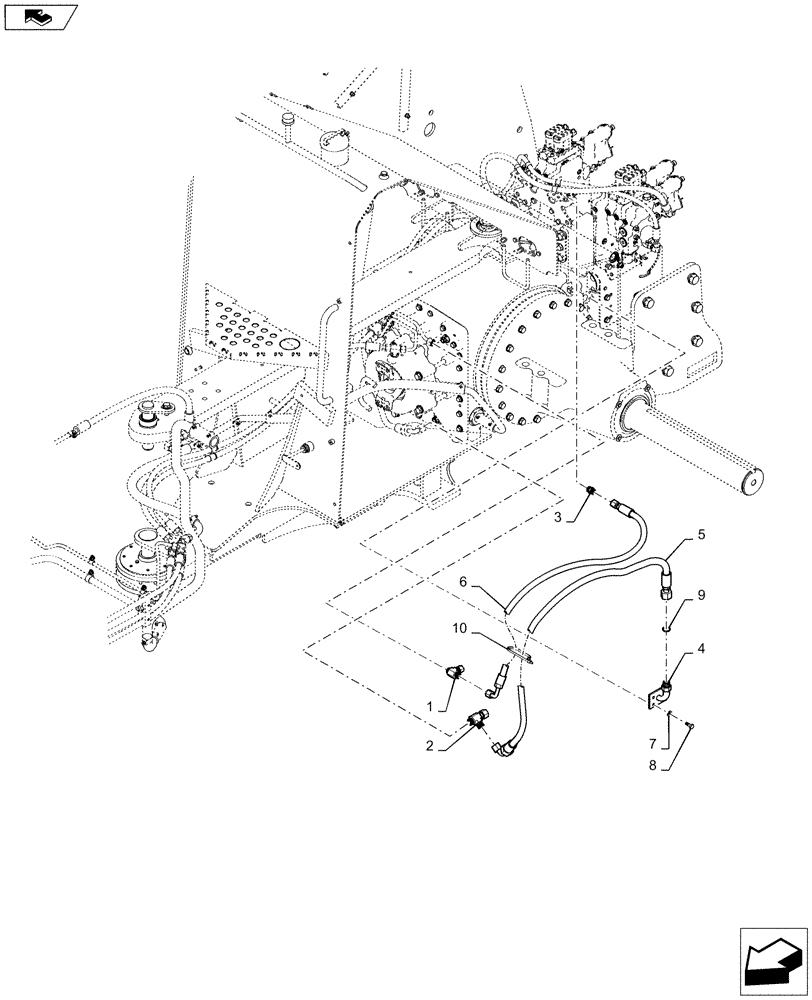

Запчасти Case IH STEIGER 600 (14.100.03) - LUBE - PTO TRANSFER CASE - 450 SERIES AXLE - WHEELED (14) - MAIN GEARBOX & DRIVE

1

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

2

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

3

84199773

FITTING

Orifice

1шт.

4

86992408

FITTING

Adapter, PTO Drop Box

1шт.

5

84212098

HOSE ASSY.

PTO Case Drain

1шт.

6

84224867

HYDRAULIC HOSE

PTO Case Lube Supply

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15" IN

1шт.
