Запчасти Case IH STEIGER 600 (10.414.01) - HYDRAULIC FAN, MOTOR, & ATTACHMENTS (10) - ENGINE

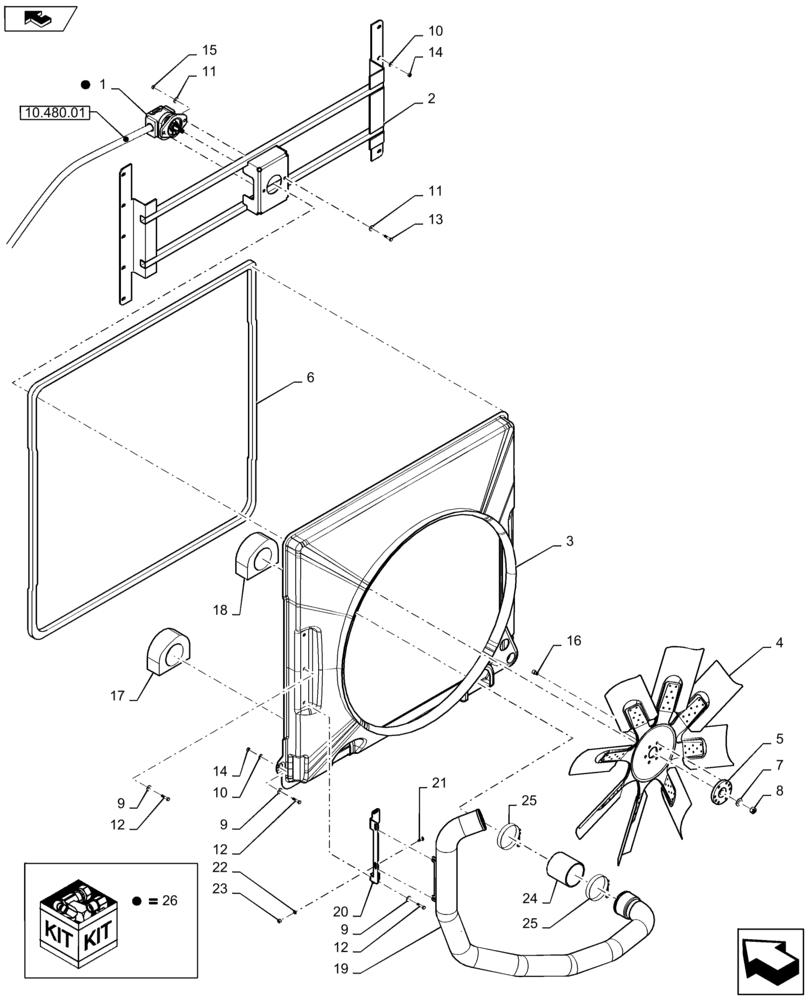

Схема запчастей Case IH STEIGER 600 - (10.414.01) - HYDRAULIC FAN, MOTOR, & ATTACHMENTS (10) - ENGINE
25
24
11
9
3
7
10
5
9
17
12
19
1
2
16
13
14
6
26
4
10.480.01
25
22
10
23
26
18
21
26
9
14
8
12
20
15
11
12

Артикул

Название

Примечание

Количество

1

47594396

HYDRAULIC MOTOR

Fan, W/ Check Valve, 33CC, Steiger 500, QuadTrac 450 & 500

1шт.

1

47594396R

REMAN-HYD MOTOR

Fan, W/ Check Valve, 33CC, Steiger 500, QuadTrac 450 & 500

1шт.

1

47594396C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

87470196

SERVICE KIT

Hydraulic Motor Seal Kit, Steiger 500, QuadTrac 450 & 500, Not Illustrated

1шт.

1

84595236

HYDRAULIC MOTOR

Fan, W/ Check Valve, 60CC, Steiger 550 & 600, QuadTrac 550 & 600

1шт.

1

84595236R

REMAN-HYD MOTOR

Fan, W/ Check Valve, 60CC, Steiger 550 & 600, QuadTrac 550 & 600

1шт.

1

84595236C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

47952654

SEAL KIT

Hydraulic Motor Seal Kit, Steiger 550 & 600, QuadTrac 550 & 600, Not Illustrated

1шт.

2

84163937

BRACKET

Hydraulic Fan

1шт.

3

84294466

SHROUD

38" Fan, Steiger 500, QuadTrac 450 & 500, Serial Range: -ZBF128876

1шт.

3

84481715

SHROUD

38" Fan, Steiger 500, QuadTrac 450 & 500, Start Serial: ZBF128877

1шт.

3

84294465

SHROUD

42" Fan, Steiger 550 & 600, QuadTrac 550 & 600, Serial Range: -ZBF128845

1шт.

3

84481713

SHROUD

42" Fan, Steiger 550 & 600, QuadTrac 550 & 600, Start Serial: ZBF128846

1шт.

4

87438155

FAN

38", Steiger 500, QuadTrac 450 & 500

1шт.

4

84135823

FAN,8 Blades, 1066.8mm OD

42", Steiger 550 & 600, QuadTrac 550 & 600

1шт.

5

84124875

HUB

38" Fan, Steiger 500, QuadTrac 450 & 500

1шт.

5

84142645

HUB

42" Fan, Steiger 550 & 600, QuadTrac 550 & 600

1шт.

6

84294467

FOAM,12.7mm W x 5280mm L x 12.7mm Thk

Seal, Shroud

1шт.

7

495-11066

WASHER,5/8", SAE

38" Fan, Steiger 500, QuadTrac 450 & 500

1шт.

7

495-11106

WASHER,1", SAE

42" Fan, Steiger 550 & 600, QuadTrac 550 & 600

1шт.

8

429-1110

NUT,5/8"-18, G8

38" Fan, Steiger 500, QuadTrac 450 & 500

1шт.

8

84139328

NUT,1"-14, Gr 8

42" Fan, Steiger 550 & 600, QuadTrac 550 & 600

1шт.

9

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

12

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

8шт.

13

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

12шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

16

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

6шт.

17

84296103

FOAM

Seal, CAC Outlet

1шт.

18

84367592

SEAL

Foam, CAC Inlet, 38 Fan, Steiger 500, QuadTrac 450 & 500

1шт.

18

84367594

SEAL

Foam, CAC Inlet, 42 Fan, Steiger 550 & 600, QuadTrac 550 & 600

1шт.

19

84324453

AIR INTAKE TUBE

1шт.

20

84323034

BRACKET, SUPPORTING

1шт.

21

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

24

84327893

AIR HOSE

CAC, 4 Hot

1шт.

25

87420676

HOSE CLAMP,108mm - 115.8mm

T-BOLT 108-116MM W/SPG

2шт.

26

87470196

SERVICE KIT

Seal, 33CC Hydraulic Motor Only, Steiger 500, QuadTrac 450 & 500

1шт.

Выбрано товаров: 41
