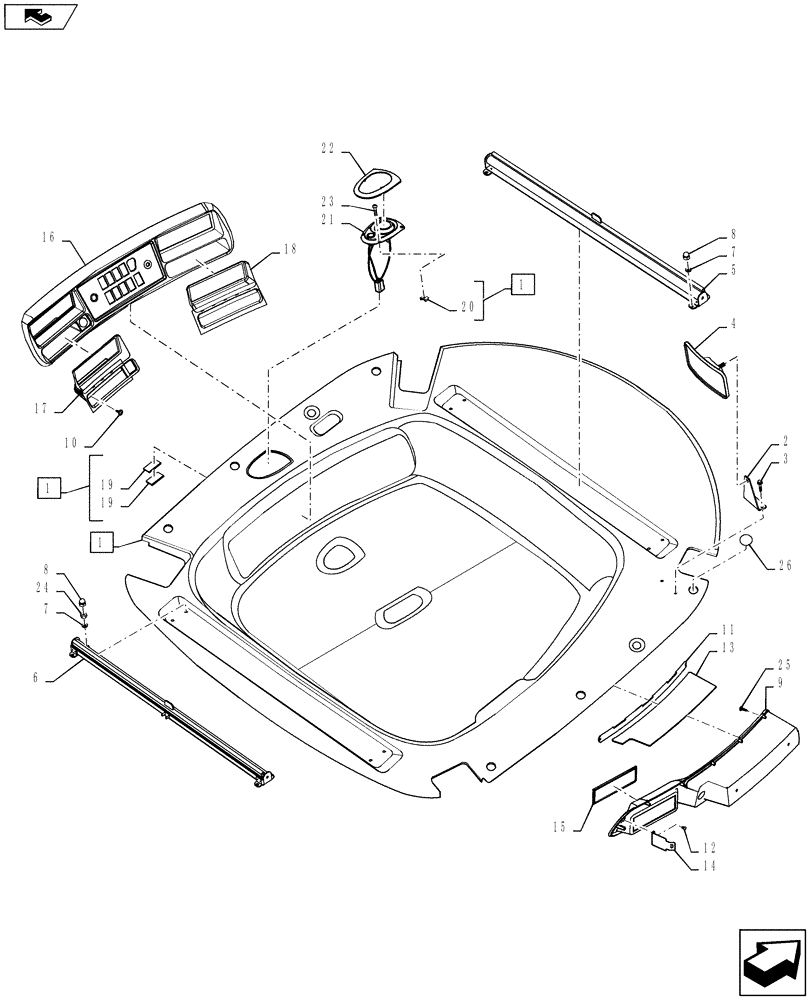

Запчасти Case IH STEIGER 600 (90.160.04[01]) - HEADLINER - WITH BLINDS, INSERTS, CONSOLE AND MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84360585

HEADLINER

Headliner

1шт.

2

64-086T3

BRACKET

Mirror

1шт.

3

555-12

BOLT,Hvy Hex, M6 x 30mm, Cl 10.9

2шт.

4

A177462

MIRROR

Rear View

1шт.

5

87450399

VISOR, SUN

Front, Scissor

1шт.

6

87450400

VISOR, SUN

Rear Scissor

1шт.

7

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6.6 X 12.0 X 1.6

8шт.

8

834-502

CROWN NUT,Crown, M6, Cl8

8шт.

9

84360595

BEZEL

LH

1шт.

10

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

7шт.

11

84360600

BAR

BAR, Bezel Insert

1шт.

12

16083404

SELF-TAP SCREW,Spcl, Pozidriv Pan Hd, M4 x 2.5 x 10mm, Hi-Lo

Tapping, 4 X 10 HI-LOPAN C/R-PZ AB DAC

4шт.

13

84314231

INSERT

LH Bezel

1шт.

14

84259071

BRACKET

Bezel Mounting

1шт.

15

1535219C1

COVER

Radio Openeing

1шт.

16

84360590

BEZEL

RH

1шт.

17

84360599

INSERT

Storage

1шт.

18

84360598

INSERT

Storage

1шт.

19

NSS

NOT SOLD SEPARAT

FASTENER, Dual-Lock, 25.0 x 50.0

16шт.

20

302862A1

SPRING NUT,4.2 Thread

Spring

4шт.

21

372892A1

LAMP

Map Light

1шт.

22

360364A1

BEZEL

Map Light

1шт.

23

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

2шт.

24

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

25

1975919C1

SELF-TAP SCREW

Truss Head w/Washer

5шт.

26

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

6шт.
