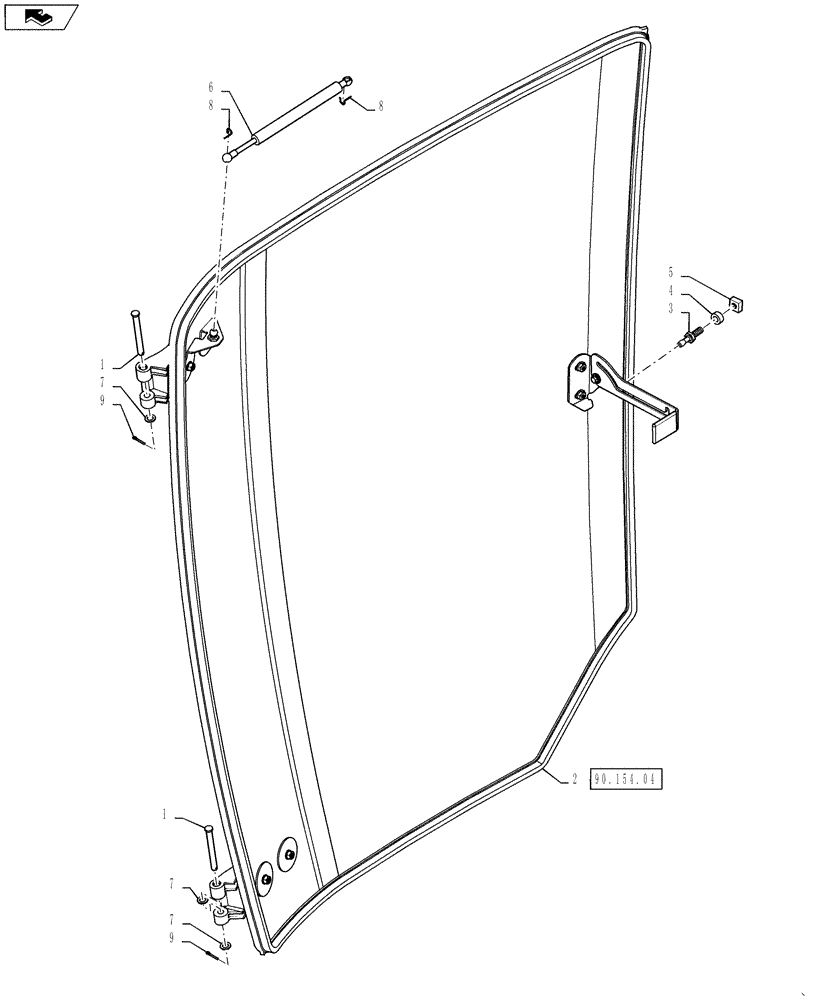

Запчасти Case IH STEIGER 600 (90.154.03) - DOOR - RIGHT HAND, INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

178819A3

PIN,10mm OD x 94.55mm L

Hinge; Use With Circlip (Not Illustrated)

2шт.

1

84542381

PIN,10mm OD x 98.6mm L

Hinge; Use With Cotter Pin

2шт.

2

NSS

NOT SOLD SEPARAT

RH CAB DOOR

1шт.

3

84434978

PIN,10mm OD x 61mm L

RH, Door Latch, Serial Range: -ZGF306074

1шт.

3

47910915

PIN,M10 x 1.5, 61mm L

Door Latch, Start Serial: ZGF308462

1шт.

4

84434981

SPACER,10.5mm ID x 20mm OD x 9mm Thk

1шт.

5

87015110

PLATE,Square, M10 x 1.5

M10 X 1.5 - 6H

1шт.

6

87423389

DAMPER

Gas Cylinder

1шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

8

3233348R1

CLIP

Retainer, 13mm

2шт.

9

800-439

CIRCLIP,M9

If Equipped (Not Illustrated)

2шт.

9

733-3220

COTTER PIN,M3.2 x 20

If Equipped

2шт.
