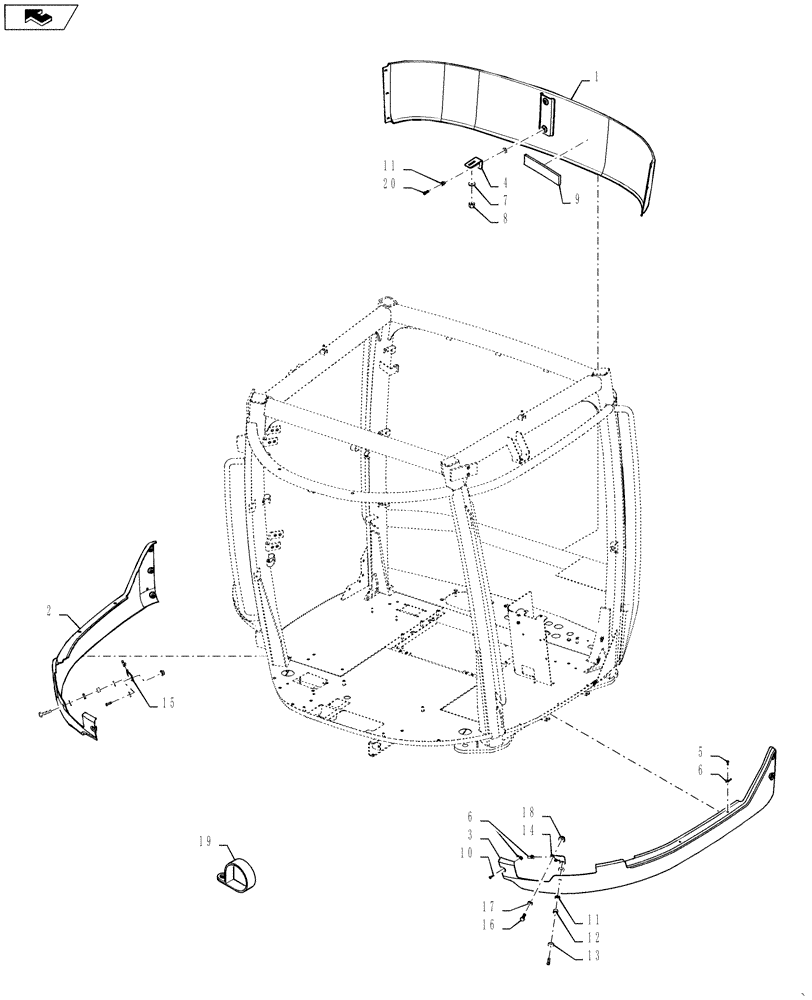

Запчасти Case IH STEIGER 600 (90.150.09[01]) - CAB SKIRTS - LUXURY CAB, NON-SUSPENDED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84310846

SKIRT COVER

Rear

1шт.

2

84384348

SKIRT COVER

RH, Luxury

1шт.

3

84384347

SKIRT COVER

LH, Luxury

1шт.

4

84362939

BRACKET, SUPPORTING

Skirt

1шт.

5

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

5шт.

6

404882A1

SPRING NUT,M6

Nut M6 Spring

14шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

403325A2

FOAM,30mm x 50mm x 250mm

Spacer

4шт.

10

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

10шт.

11

60-6840T1

GROMMET,1/2" ID x 3/4" OD

Rubber, .5 ID Split

2шт.

12

60-5021T1

SPACER,0.282" ID x 0.500" OD x 0.312" Thk

2шт.

13

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

14

84386876

BRACKET

LH Front Skirt Mounting

1шт.

15

84386877

BRACKET

RH Front Skirt Mounting

1шт.

16

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

17

892-11006

LOCK WASHER,M6

4шт.

18

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

19

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

20

86013769

NUT

1шт.
