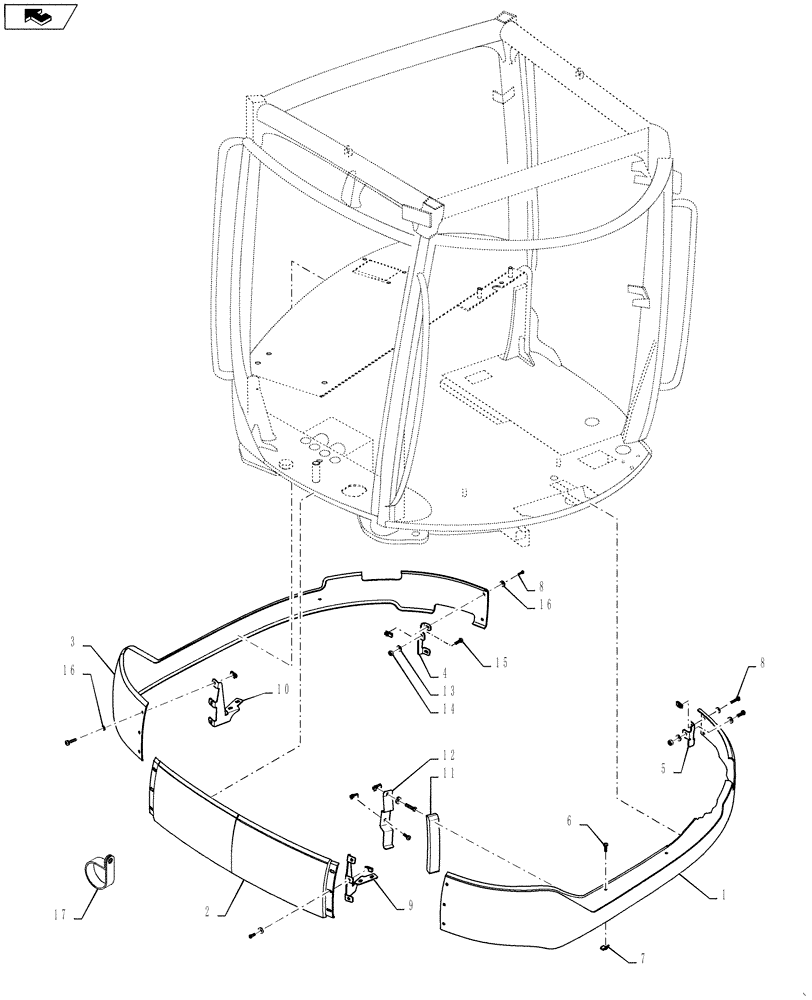

Запчасти Case IH STEIGER 600 (90.150.08[02]) - CAB SKIRTS - STANDARD, DELUXE CAB, SUSPENDED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84478692

SKIRT COVER

RH, Suspended Cab

1шт.

2

84371576

SKIRT COVER

Rear, Suspended Cab

1шт.

3

84384332

SKIRT COVER

LH, Suspended Cab

1шт.

4

84372061

BRACKET, SUPPORTING

Front Skirt Mounting

1шт.

5

84478662

BRACKET

Front Skirt Mounting, RH

1шт.

6

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

8шт.

7

404882A1

SPRING NUT,M6

M6 Spring Nut

18шт.

8

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

10шт.

9

84371547

BRACKET, SUPPORTING

Side Skirt

1шт.

10

84371548

BRACKET, SUPPORTING

Skirt

1шт.

11

403325A2

FOAM,30mm x 50mm x 250mm

Closed Cell, Spacer

2шт.

12

84372669

BRACKET, SUPPORTING

Skirt

2шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

16

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

17

369708A1

CLAMP

Insulated Double, 9.50 Dia.

2шт.
