Запчасти Case IH STEIGER 600 (90.150.08[01]) - CAB SKIRTS - STANDARD, DELUXE CAB, NON-SUSPENDED (90) - PLATFORM, CAB, BODYWORK AND DECALS

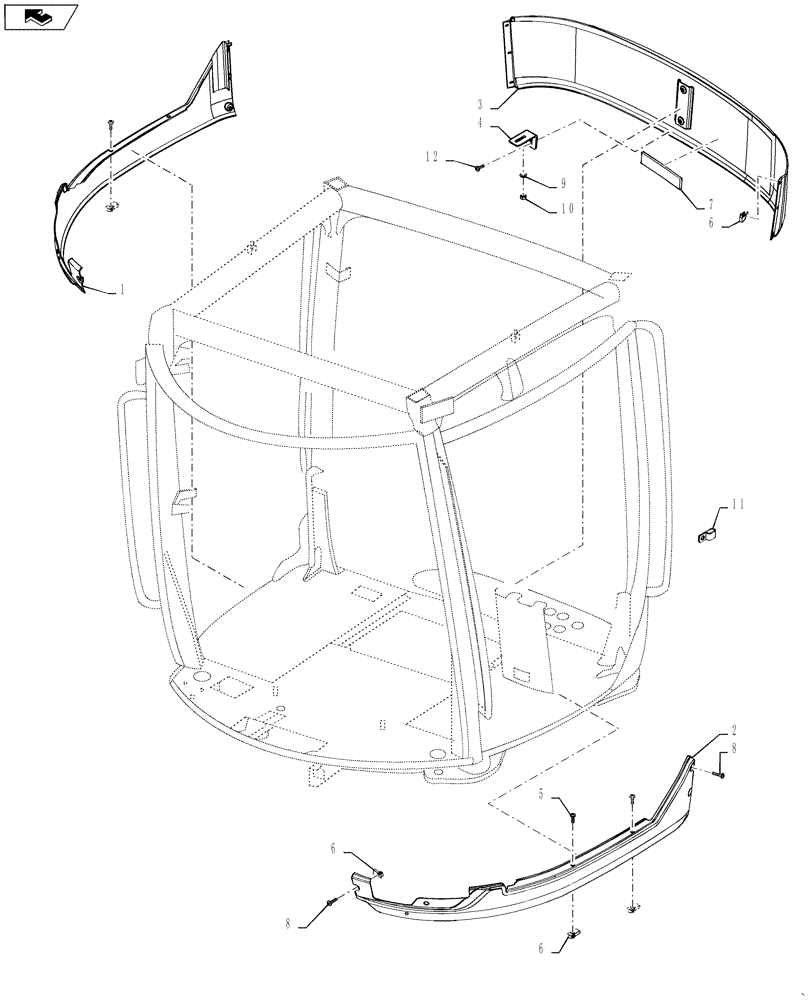

Схема запчастей Case IH STEIGER 600 - (90.150.08[01]) - CAB SKIRTS - STANDARD, DELUXE CAB, NON-SUSPENDED (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
9
4
3
11
7
5
8
1
2
home
6
8
6
6
10

Артикул

Название

Примечание

Количество

1

84408130

SKIRT COVER

RH, Standard

1шт.

2

84408128

SKIRT COVER

LH, Standard

1шт.

3

84310846

SKIRT COVER

Rear

1шт.

4

84362939

BRACKET, SUPPORTING

Skirt

1шт.

5

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

5шт.

6

404882A1

SPRING NUT,M6

Nut M6 Spring

12шт.

7

403325A2

FOAM,30mm x 50mm x 250mm

Spacer

4шт.

8

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

8шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

369708A1

CLAMP

Insulated, Double, 9.5 " DIA.

1шт.

12

86013769

NUT

1шт.

Выбрано товаров: 12
