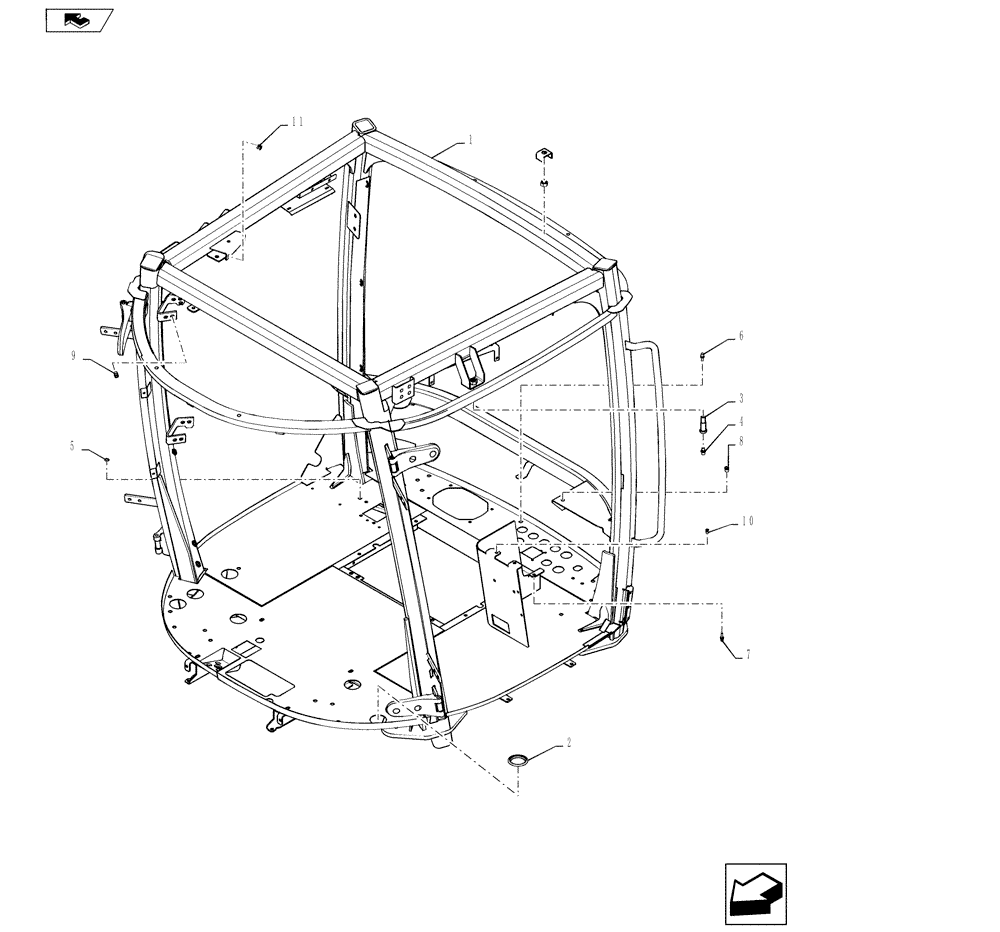

Запчасти Case IH STEIGER 600 (90.150.04) - CAB FRAME, NON-SUSPENDED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84392507

CAB BODY

Steiger 550 - 600 Ag Version, QuadTrac 450 - 600 Ag Version, Steiger 500 Scraper Version, QuadTrac 500 - 550 Scraper Version

1шт.

1

87719875

FRAMEWORK

Steiger 500 Ag Version (Not Shown)

1шт.

1

84317757

FRAMEWORK

Steiger 550 - 600 Scraper Version (Not Shown)

1шт.

2

353-593

PLUG

Button Recessed, Nominal 2.500

2шт.

3

442085A1

MOUNTING PARTS

Ball Stud

2шт.

4

3234063R1

BALL STUD,M10 x 1.5

2шт.

5

64-146

PLUG

Cap, .500 In Hole

4шт.

6

408567A1

STUD

Threaded Captive

12шт.

7

440570A1

STUD

Threaded Captive

12шт.

8

408566A1

INSERT,M8

5шт.

9

379540A1

INSERT,M8

14шт.

10

404287A1

INSERT,M6

5шт.

11

322072A2

FASTENER

Plastic Expansion

7шт.
