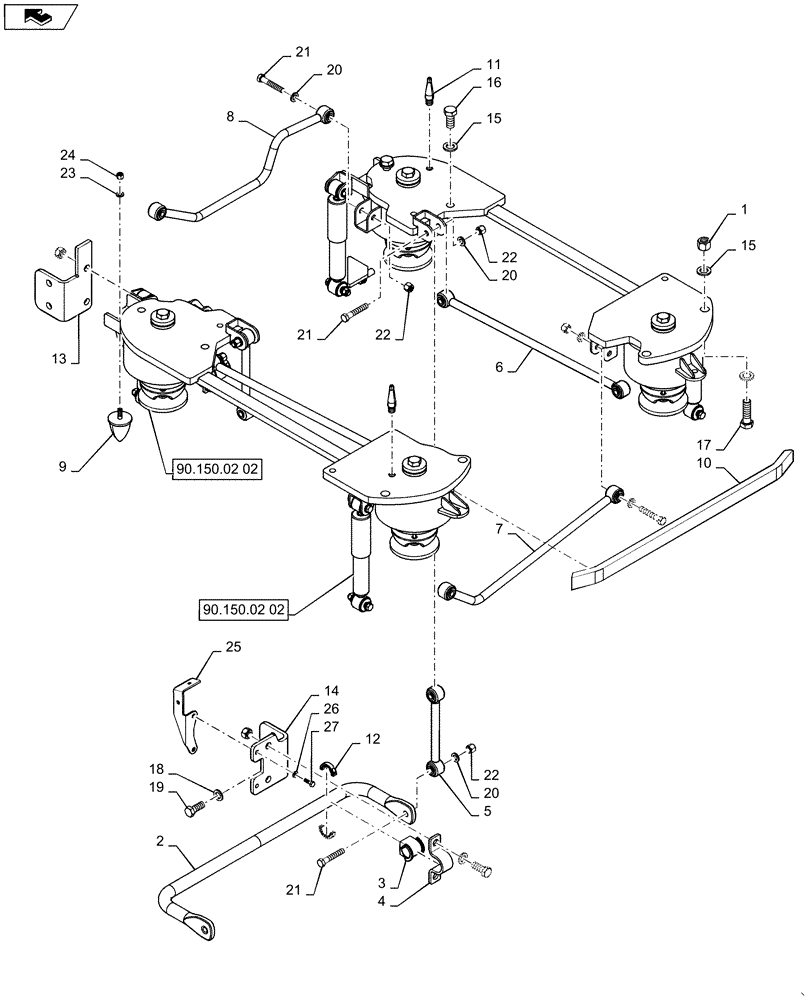

Запчасти Case IH STEIGER 600 (90.150.02[01]) - CAB MOUNTING - SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

832-10424

NUT,M24 x 3, Cl 8

4шт.

2

84330344

BAR

Anti-Roll

1шт.

3

84319416

RUBBER BUSHING

Anti-Roll Bar

2шт.

4

84324033

CLAMP

Anti-Roll Bar

2шт.

5

84330339

LINK

Drop

2шт.

6

84330334

LINK

Longitudinal

2шт.

7

84427994

LINK

Panhard Rear

1шт.

8

84427986

LINK

Panhard Front

1шт.

9

84391698

BUMPER

Bumper

4шт.

10

84386033

FRAME

Suspension

1шт.

11

84326029

PIN

Allignment

2шт.

12

84326030

CLAMP

Anti-Roll Bar

2шт.

13

NSS

NOT SOLD SEPARAT

BRACKET, Anti-Roll Bar Mounting, LH

1шт.

14

NSS

NOT SOLD SEPARAT

BRACKET, Anti-Roll Bar Mounting, RH

1шт.

15

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

16

9780129

BOLT,Hex, M24 x 50mm, Cl 10.9

4шт.

17

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

4шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

19

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

8шт.

20

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

28шт.

21

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

12шт.

22

832-10416

NUT,M16 x 2, Cl 8

14шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

25

84356263

BRACKET, SUPPORTING

Routing

1шт.

26

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

27

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
