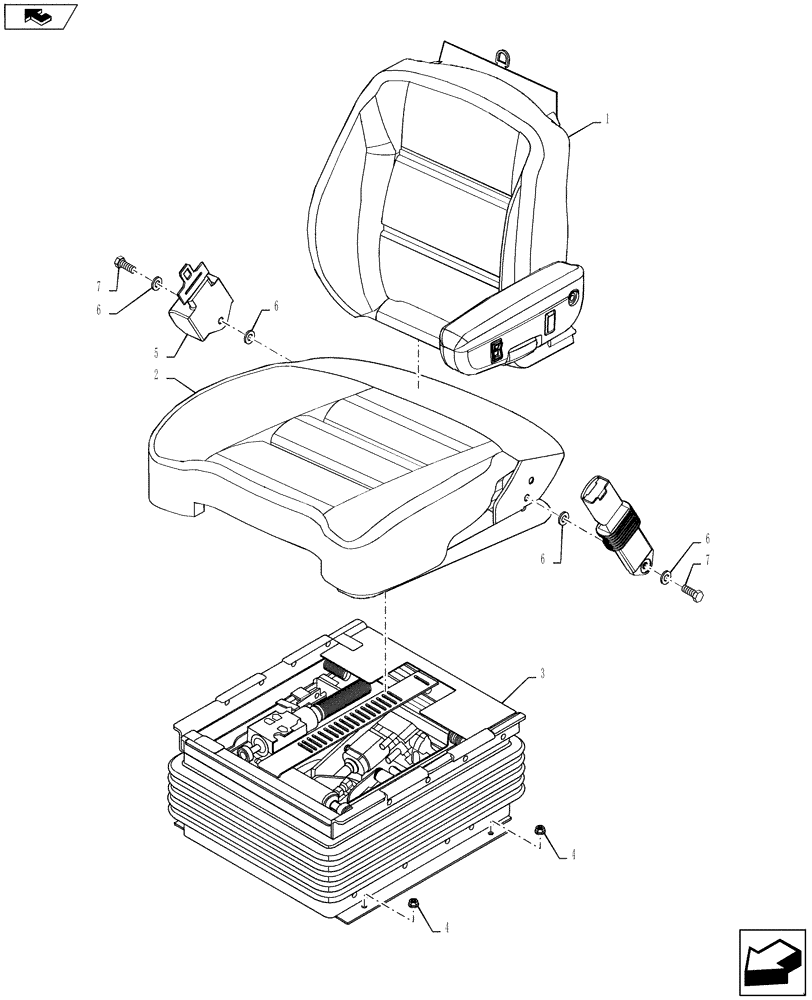

Запчасти Case IH STEIGER 600 (90.124.01[01]) - SEAT - OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

84337499

DRIVER SEAT

Cloth, Standard, w/o Heat

1шт.

84337501

DRIVER SEAT

Cloth, Standard - Deluxe w/Heat

1шт.

84337503

DRIVER SEAT

Cloth, Delux, Semi-Active w/Heat

1шт.

84337505

DRIVER SEAT

Cloth, Luxury, Leather w/Heat

1шт.

1

87758229

CUSHION

Back, Cloth, Used With 84337499 Seat Assembly

1шт.

1

84392249

SEAT CUSHION

Back, Cloth, Used With 84337501 & 84337503 Seat Assembly

1шт.

1

84392254

SEAT CUSHION

Back, Leather, Used With 84337505 Seat Assembly

1шт.

2

84173146

SEAT CUSHION

Bottom, Cloth, Used With 84337499 Seat Assembly

1шт.

2

84392247

SEAT CUSHION

Bottom, Cloth, Used With 84337501 & 84337503 Seat Assembly

1шт.

2

84392250

SEAT CUSHION

Bottom, Leather, Used With 84337505 Seat Assembly

1шт.

3

84406039

SERVICE KIT

Suspension, Standard / Deluxe

1шт.

3

84406040

SERVICE KIT

Suspension, Luxury

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

84257916

SEAT BELT,48mm W x 1447.8mm L

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

.500" x 1.250" x .08" Thk

3шт.

7

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

2шт.
