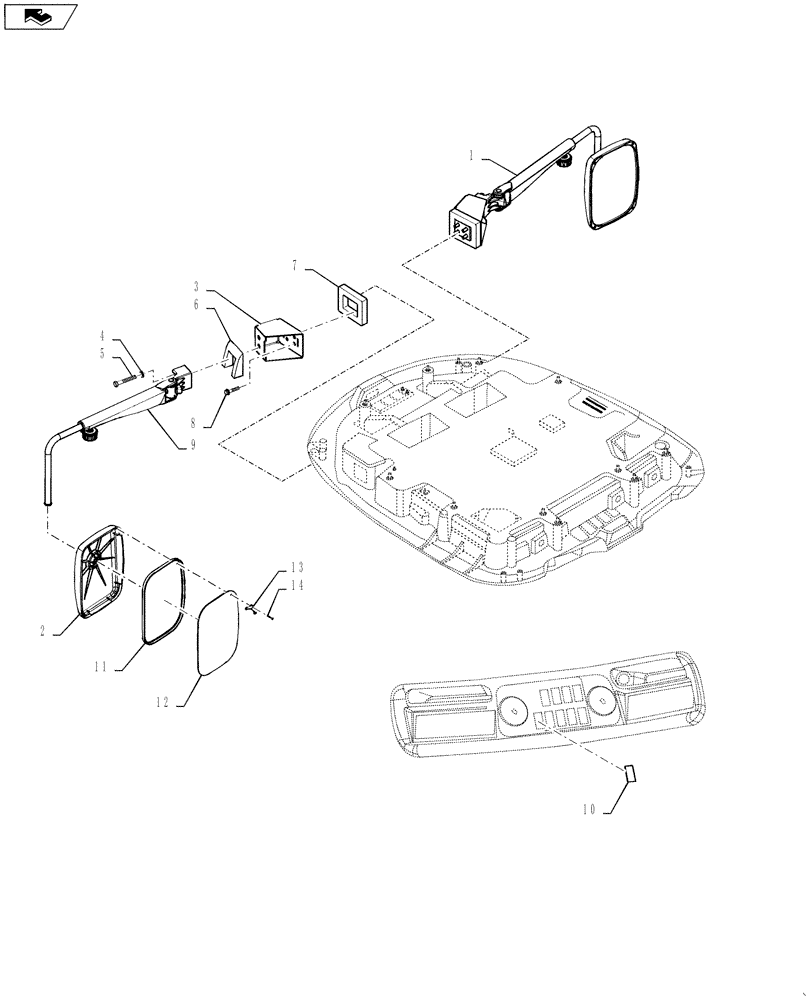

Запчасти Case IH STEIGER 600 (90.118.04) - EXTERIOR MIRRORS - MANUAL ADJUST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87363073

ARM

RH Mirror, Manual

1шт.

2

87350494

MIRROR ASSY.,240mm x 329mm

Manual, Incl 11 - 14

2шт.

3

84307672

BRACKET

Mirror

2шт.

4

86639330

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

5

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

6

84307675

SEAL

Mirror Roof Opening

2шт.

7

NSS

NOT SOLD SEPARAT

Seal, Mirror

2шт.

8

87522185

FLANGE BOLT,Hex, M10 x 50mm, Cl 10.9

8шт.

9

87363070

ARM

LH Mirror, manual

1шт.

10

84314224

DECAL

Non-Mirror Switch

1шт.

11

324437A1

REPLACEMENT MIRROR

Glass

1шт.

12

82035218

MIRROR,300mm x 200mm

Lens, Acrylic, 300 x 200

1шт.

13

87531094

BRACKET

Manual Mirror Head

4шт.

14

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.
