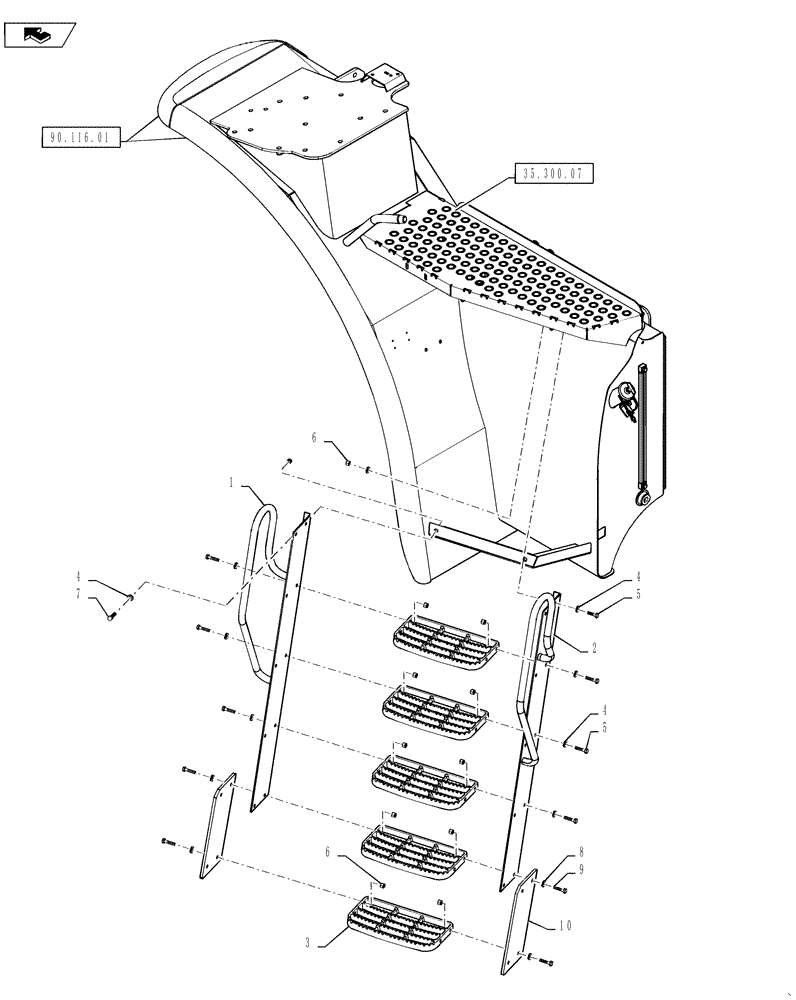

Запчасти Case IH STEIGER 600 (90.118.01) - LADDER - DRIVERS PLATFORM ACCESS, LEFT SIDE - WHEELED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84348147

LADDER

Left Front

1шт.

2

84348143

LADDER

Left Rear

1шт.

3

87301185

STEP

Cast Aluminum

5шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

24шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

26шт.

7

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

2шт.

8

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

9

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

10

87734958

SUPPORT

Step

2шт.
