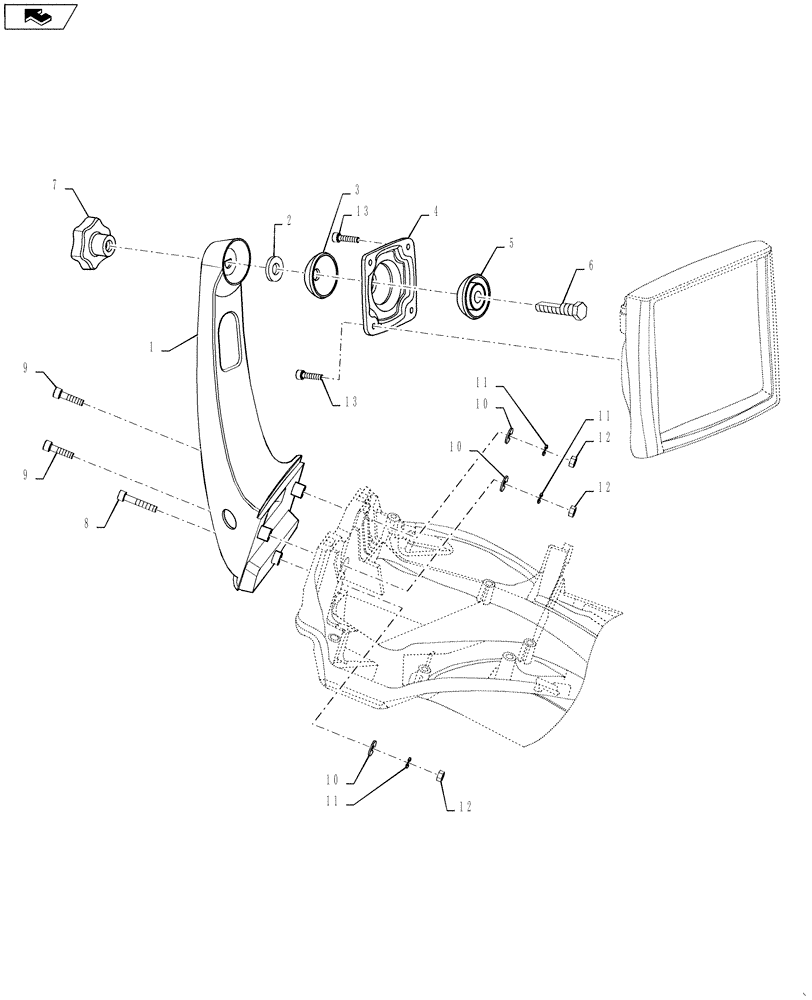

Запчасти Case IH STEIGER 600 (90.115.03) - ARMREST - MONITOR MOUNT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84369437

MOUNT

Display Support

1шт.

2

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

3

82039389

CUP WASHER,12.5mm ID x 50mm OD x 17mm Thk, Glass Filled Nylon

Ball Joint

1шт.

4

87583911

BASE PLATE

Mount, SWCDD, Ball Joint

1шт.

5

82038414

HALF BALL

Ball Joint

1шт.

6

87568603

SPECIAL BOLT,Hex, M12 x 60

D-Section

1шт.

7

87353504

KNOB

M12 x 1.75 Internal Thread

1шт.

8

120162

HEX SOC SCREW,M6 x 35mm, Cl 8.8

1шт.

9

14305421

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

10

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

11

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

3шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

13

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

14

84228344

HARNESS

SWCD, (Not Shown), Refer To 55.100.28

1шт.
