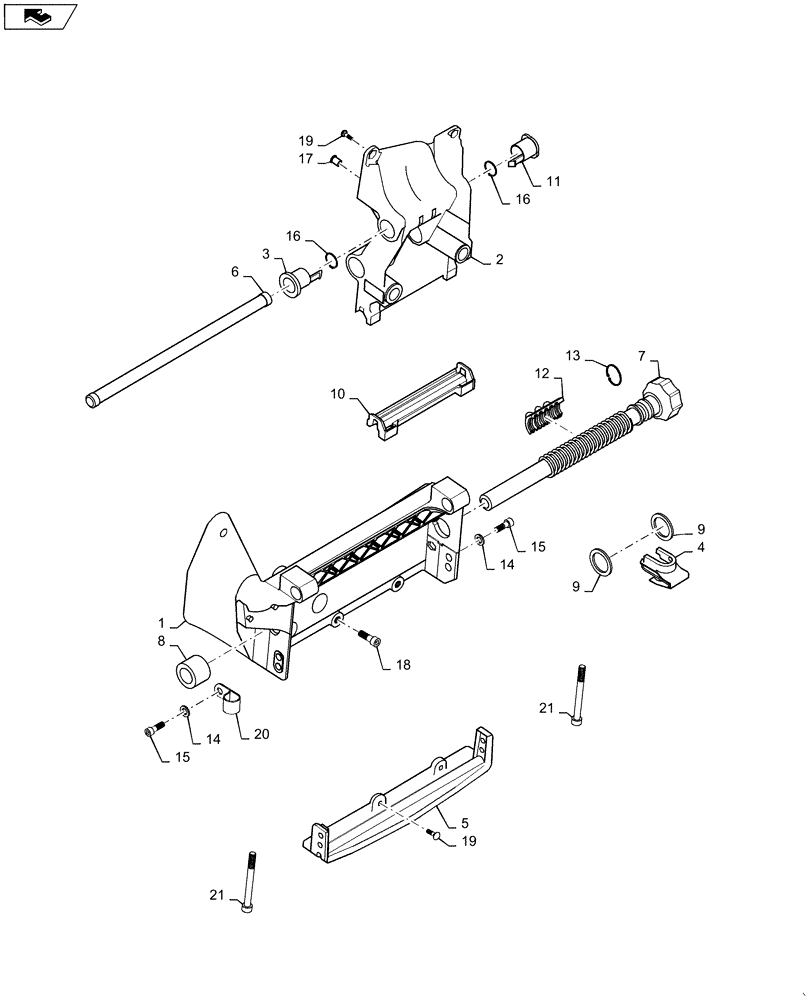

Запчасти Case IH STEIGER 600 (90.115.02) - ARMREST - MECHANICAL ADJUST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84146844

SLIDE

Fixed, Armrest Adjuster

1шт.

2

84146845

SLIDE

Mobile, Armrest Adjuster

1шт.

3

84146834

BUSHING,14.3mm ID x 20.36mm OD x 43.3mm L

Rear

1шт.

4

84146837

SPACER,18mm ID x 29mm OD

Front

1шт.

5

84236407

SUPPORT

Pillow, Armrest Adjuster

1шт.

6

84146847

SHAFT,14mm OD x 280mm L

Guide, Armrest Adjuster

1шт.

7

84163864

ADJUSTMENT SCREW,309 mm L

Armrest

1шт.

8

87746925

SPACER

30 OD 18 ID x 20

1шт.

9

84146848

FRICTION WASHER,24.4mm ID x 32mm OD x 1.7mm Thk

32 OD 24 ID x 1.7

2шт.

10

84236392

SLIDE GUIDE

Pillow, , Armrest Adjuster

1шт.

11

84146826

BUSHING,14.3mm ID x 20.36mm OD x 40.3mm L

Front

1шт.

12

84146843

HALF-BUSHING,48mm L

Adjuster

1шт.

13

81865873

CLIP,19.40mm D

External Retaining Ring

1шт.

14

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

6шт.

15

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

6шт.

16

11066271

RING,Ext, 14mm Dia

Retaining, EXT REG 14MM CSS ZNM

2шт.

17

15624411

RIVET,Flat, M6 OD x 16mm L

6X16 Flat HD Threaded Tubular Hex

4шт.

18

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

19

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

FLAT-HD W/Collar M6X22 8.8 BZN

4шт.

20

84232921

CABLE CLIP,25mm ID

P Type

1шт.
