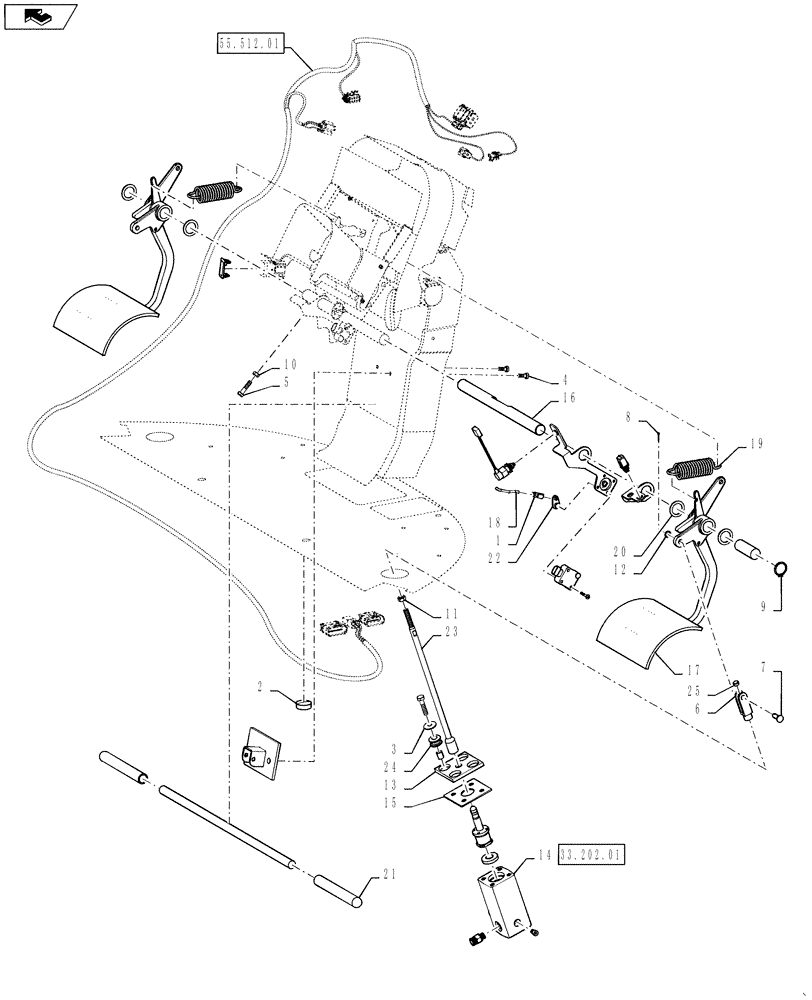

Запчасти Case IH STEIGER 600 (90.112.01) - CLUTCH AND BRAKE CONTROL PEDALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

60-2404T1

RETAINER

Plastic Clip

2шт.

2

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

3

495-81001

WASHER,5/16"

4шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

5шт.

6

713-1110

CLEVIS

M10 X 40 PLN REG ADJ

1шт.

7

729-1030

CLEVIS PIN,M10 x 30

1шт.

8

733-2512

COTTER PIN,M2.5 x 12

1шт.

9

800-1125

SNAP RING,M25, Ext

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

13

84304615

GASKET,8mm Thk

Brake Valve

1шт.

14

84323739

BRAKE VALVE

High Pressure

1шт.

15

84342645

MOUNTING PLATE

Brake Valve ISO Mount

1шт.

16

87448885

SUPPORT

Pedal

1шт.

17

222462A2

PEDAL

Control

2шт.

18

222463A2

LINK

Push/Pull

1шт.

19

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

Extension

2шт.

20

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

4шт.

21

321961A1

MOLDING

Rubber

2шт.

22

322409A1

PIN

Potentiometer

1шт.

23

369851A1

ROD

Brake, Threaded

1шт.

24

434177A1

ISOLATOR

Mounter, Center Bonded

4шт.

25

281893A1

BEARING

Pedal

2шт.

26

279265A2

SWITCH

NC

1шт.

27

800-1110

SNAP RING,M10, Ext

1шт.

28

840-1530

SCREW,Pan, M5 x 30mm, Cl 4.8

2шт.

29

84349501

HARNESS

Front Dash - See Figure 55.512.01

1шт.

30

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1шт.

31

283659A1

SENSOR

Hitch Position

1шт.

32

305155A2

BUSHING

Potentiometer

1шт.

33

355341A1

SWITCH

Clutch NC

1шт.

34

169850C2

CABLE CLIP

Harness

1шт.
