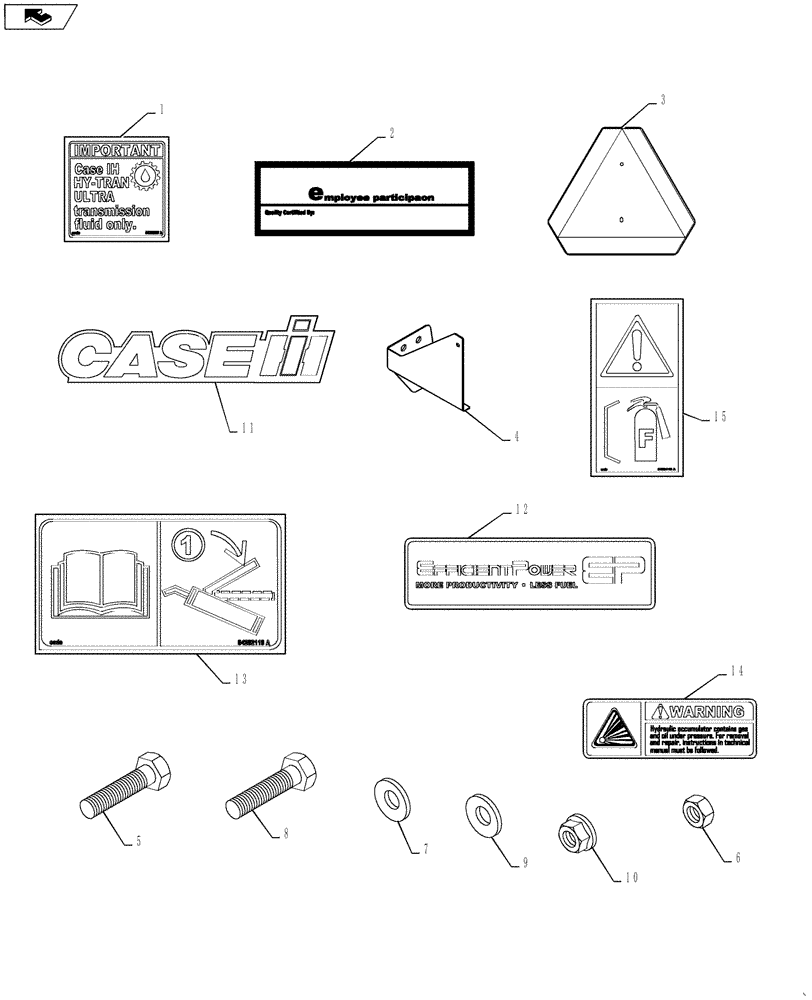

Запчасти Case IH STEIGER 600 (90.108.06) - DECALS, N/A & AUS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84362257

DECAL

Transmission Fluid, Hytran

1шт.

2

NSS

NOT SOLD SEPARAT

Production Only

1шт.

3

311860A1

EMBLEM

Slow Moving Vehicle

1шт.

4

84351926

BRACKET

Slow Moving Vehicle Mount

1шт.

5

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

SMV Mounting Hardware - Not Shown

2шт.

6

425-104

NUT,1/4"-20, Cl 5

SMV Mounting Hardware - Not Shown

2шт.

7

495-11028

WASHER,1/4", SAE

SMV Mounting Hardware - Not Shown

4шт.

8

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

SMV Mounting Hardware - Not Shown

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

SMV Mounting Hardware - Not Shown

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

SMV Mounting Hardware - Not Shown

2шт.

11

87681854

DECAL

Case- IH 200 x 48

1шт.

12

84390356

DECAL

Engine Power

1шт.

13

84396880

DECAL

Grease Information

1шт.

14

82029752

DECAL

Hydraulic

1шт.
