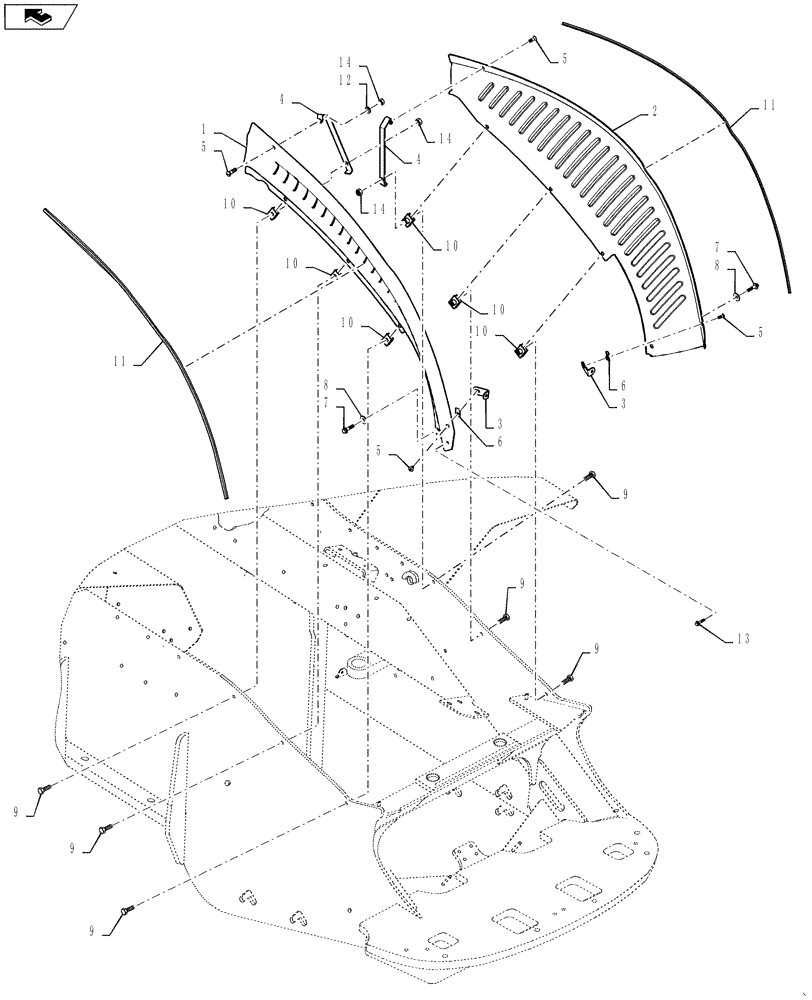

Запчасти Case IH STEIGER 600 (90.100.03[02]) - ENGINE DEBRIS SCREENS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84492718

SCREEN

Engine Debris, RH, Start Serial: ZCF130382

1шт.

2

84492719

SCREEN

Engine Debris, LH, Start Serial: ZCF130382

1шт.

3

84263279

BRACKET

Screen, Start Serial: ZCF130382

2шт.

4

84492729

BRACKET

RR Debris Shield, Start Serial: ZCF130382

2шт.

5

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

, Start Serial: ZCF130382

4шт.

6

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

, Start Serial: ZCF130382

2шт.

7

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

, Start Serial: ZCF130382

2шт.

8

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

, Start Serial: ZCF130382

2шт.

9

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

Rear Screen, Start Serial: ZCF130382

6шт.

10

833-40310

NUT,M10, U

, Start Serial: ZCF130382

6шт.

11

84492723

RUBBER SEAL

, Start Serial: ZCF130382

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Start Serial: ZCF130382

4шт.

13

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

, Start Serial: ZCF130382

2шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

, Start Serial: ZCF130382

4шт.
